IPC6212-IR(6mm)

Original price was: $480.00.Current price is: $456.00.

Model: Huawei IPC6212-IR(6mm) 1.3MP Network IR Bullet Camera
Details: Huawei IPC6212-IR(6mm) 1.3MP Network IR Bullet Camera(30fps,f=6mm,FE,IR 20m)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: IPC6212-IR(6mm) Categories: , ,
Description

IPC6212-IR(6mm) Overview

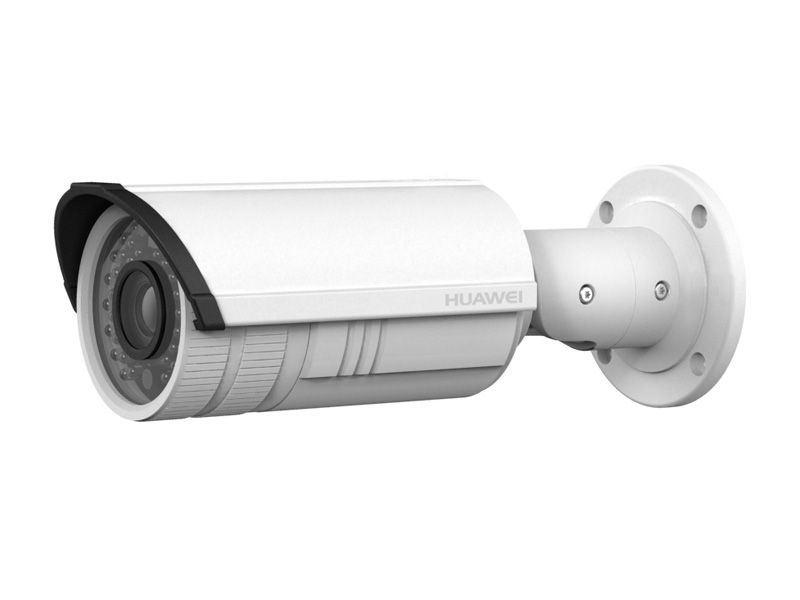

Quick Specs Figure 1 shows the appearance of IPC6212-IR(6mm).

Table 1 shows the Quick Specs.

Image sensor 1/3’’ 1.3MP Progressive Scan CMOS
Max. Image Resolution 1280(H)× 960(V)
Min. IlluminationDay &Night Mode 0.01 Lux @(F1.2,AGC ON), 0 Lux with IRAuto(ICR)/ Color / B/W /Timing/ Alarm Trigger
IR Distance 20~30m
Electronic shutter speedGain control 1/3 ~ 1/100,000sSupported
White balance MWB/AWB1/Locked WB/Fluorescent Lamp/incandescent Lamp/Warm Light Lamp/Natural Light
Wide Dynamic RangeBacklight compensation SupportedSupported
Lens MountLens ø146mm,12mm fixed lens optional; Max Aperture: F2.0
Horizontal angle of view IPC6212-IR(6mm): 46°; IPC6212-IR(12mm): 22°
Image Compression H.264 MP/BP, MJPEG
Video resolution and frame rateVideo Bitrate 50Hz: 25fps (1280 × 960), 25fps (1280 × 720)60Hz: 30fps (1280 × 960), 30fps (1280 × 720)32Kbps ~ 12Mbps
Multiple streams Main Stream/Sub Stream
ROI EncodingCorridor Format SupportedSupport aspect ratio 9:16
Audio Encoding Format G.711/G.726/MP2L2
Audio CommunicationCommunication Interface Voice intercom(Pick-up is needed), voice broadcasting, channel associated voice1 RJ45 10M/100M Adaptable Ethernet Interface,1 RS-485 Interface(PELCO-P/D)
Alarm Interface 1 alarm input /1alarm output
Audio interfaceStorage Interface 1-channel audio input/1-channel audio OutputSupport Micro SD/SDHC /SDXC Card (Max. 64G)
Analog Output 1 CVBS Composite Analog Video Output
Motion DetectionPrivacy Masking SupportedSupported
PU Access Protocolnetwork protocol ONVIF 2.2ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Digital Watermark Supported
Max. Video Streams AccessingingSecurity Measures Supported max. 6 channels video streams accessingUser name and password authentication; Support 802.1x
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language; Windows XP, Windows7, Windows8
Other functions 2D/3D Noise reduction, Front-end Recording, Front-end Capture, IP Address Filtering, MTU Configuration, Electronic mage Stabilization
Power supply DC12V±10% / PoE(802.3af)
Power consumptionOperating temperature / humidity Max. 5.5W (7.5 W for ICR Switch)Operating temperature: -30ºC ~ 60ºCOperating humidity: 5% ~ 90% (Non-condensing)
Protection LevelDevice NetWeightPhysical Product Appearance IP661000g95×105×258.6mm
