IPC6232-IR(6mm)
Model: Huawei IPC6232-IR(6mm) 3MP Network IR Bullet Camera
Details: Huawei IPC6232-IR(6mm) 3MP Network IR Bullet Camera(20fps,f=6mm,FE,IR 20m)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6232-IR(6mm) Overview

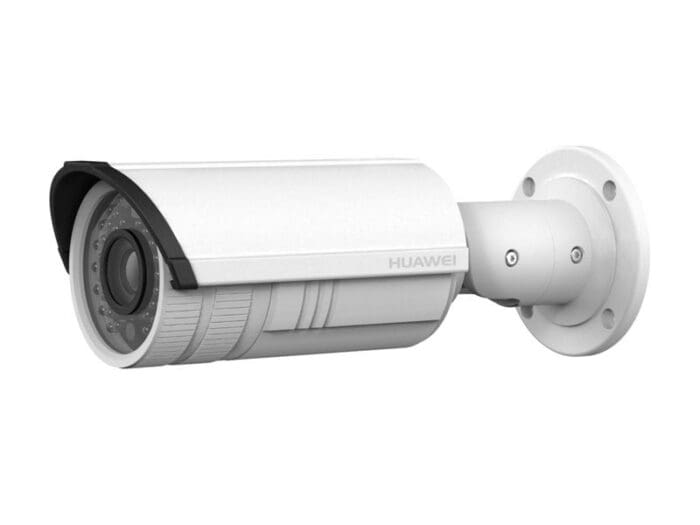

Quick Specs Figure 1 shows the appearance of IPC6232-IR(6mm).
_1.png)
Table 1 shows the Quick Specs.
| Image Sensor | 1/3’’ 3 Megapixel Progressive Scan CMOS |
| Max. Image Resolution | 2048(H)× 1536(V) |
| Min. Illumination | 0.07Lux @(F1.2,AGC ON), 0 Lux with IR |
| Day &Night ModeIR Distance | Auto(ICR) / Color / B/W /Timer / Alarm Trigger20 ~ 30m |
| Electronic shutter speed | 1/3 ~ 1/100,000s |
| Gain control | Supported |
| White balance | MWB/AWB1/Locked WB/Fluorescent Lamp/incandescent Lamp/Warm Light Lamp/Natural Light |
| Wide Dynamic Range | Supported |
| Backlight compensation | Supported |
| Lens Mount | ø14 |
| LensHorizontal angle of view | 6mm,12mm fixed lens optional; Max Aperture: F2.0IPC6232-IR(6mm):2048×1536: 43.3°, 1920×1080: 49°IPC6232-IR(12mm):2048×1536: 20.6°, 1920×1080: 23.2° |
| Image Compression | H.264 MP/BP, MJPEG |
| Video resolution and frame rate | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 ×960), 25fps (1280 × 720);60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
| Video Bitrate | 32Kbps ~ 12Mbps |
| Multiple streams | Main Stream/Sub Stream |
| ROI Encoding | Supported |
| Corridor FormatAudio Encoding Format | Support aspect ratio 9:16 for 2 megapixel and below 2 megapixelG.711/G.726/MP2L2 |
| Audio Communication | Voice intercom(Pick-up is needed), voice broadcasting, channel associated voice |
| Communication Interface | 1 RJ45 10M/100M Adaptable Ethernet Interface, 1 RS-485 Interface (PELCO-P/D) |
| Alarm Interface | 1 alarm input /1alarm output |
| Audio Interface | 1-channel audio input/1-channel audio Output |
| Storage Interface | Support Micro SD/SDHC /SDXC Card (Max. 64G) |
| Analog Video Output | 1 CVBS Composite Analog Video Output |
| Motion DetectionPrivacy Masking | SupportedSupported |
| PU Access Protocol | ONVIF 2.2 |
| Network Protocol | ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Digital WatermarkMax. Video Streams Accessinging | SupportedSupported max. 20 channels video streams accessing |
| Security MeasuresWeb Browser | User name and password authentication; Support 802.1xIE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language;Windows XP, Windows7, Windows8 |
| Other functions | 2D/3D Noise reduction, Front-end Recording, Front-end Capture, IP Address Filtering, MTU Configuration, Electronic mage Stabilization |
| Power supplyPower consumption | DC12V±10% / PoE (802.3af)Max. 5.5W (7.5 W for ICR switch) |
| Operating temperature / humidity | Operating temperature : -30ºC ~ 60ºC;Operating humidity: 5%~90% (Non-condensing) |
| Protection Level | IP66 |
| Device Net Weight | 1000g |
| Physical Product Appearance | 95×105×258.6mm |
