IPC6522-Z30
Model: Huawei IPC6522-Z30 2MP 30x Network Speed Dome
Details: Huawei IPC6522-Z30 2MP 30x Network Speed Dome(30fps,f=4.3-129mm,FE,IP66)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6522-Z30 Overview

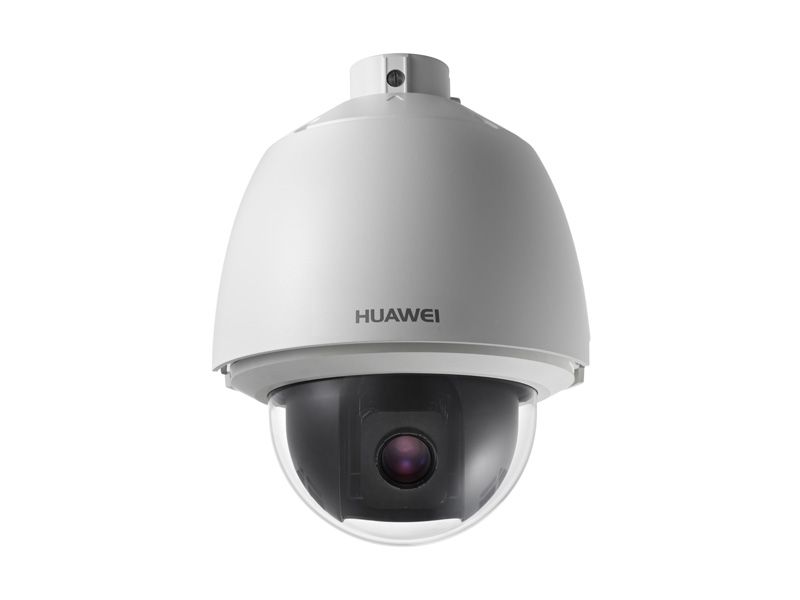

Quick Specs Figure 1 shows the appearance of IPC6522-Z30.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8“ 3MP Progressive Scan CMOS |
| Max. Image Resolution | 1920(H) × 1080(V) |
| Min. Illumination | Color : 0.05Lux @ (F1.6,AGC ON) B/W : 0.01Lux @(F1.6,AGC ON) |
| Day &Night Mode | Auto(ICR)/Color/ B/W |
| Electronic shutter speed | 1 ~ 1/10,000s |
| White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Wide Dynamic Range | Supported |
| Backlight compensation | Supported |
| Noise reduction | 3D Noise reduction |
| Focal Length | 4.3mm ~ 129.0mm |
| Zoom | Optical zoom: 30X, Digital zoom: 16x |
| Aperture Range | F1.6(Wide-end) ~ F5.0(Tele-end) |
| Min. Working Distance | 10 ~ 1500mm (Wide-Tele) |
| Angle of View | Horizontal: 65.1°(Wide-end) ~ 2.34° (Tele-end) Vertical: Wide 35°, Tele 1.7° |
| Rotate Range | Pan: 0° ~ 360°, Tilt: -5° ~ 90°(Auto-Rotate） |
| Horizontal rotation speed | Pan Manual Speed: 0.1°/s ~ 250°/s; Pan Preset Speed: 300°/s |
| Vertical rotation speed | Tilt Manual Speed: 0.1°/s ~ 150°/s, Tilt Preset Speed: 200°/s |
| Tour scan | 8 scan lines and 32 preset positions for each scan line |
| Pattern scan | A maximum of 4 scan lines and 10 minutes for each scan line |
| Number of Preset | 256 |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Self-test action |
| preset positions | 256 |
| Image Compression | H.264 MP, MJPEG |
| Resolution and Frame rate | Main Stream: 25fps (1920×1080), 25fps (1280×720); 30fps (1920×1080), 30fps (1280×720) Sub Stream: 25fps (704×576), 25fps (352×288), 25fps (320×240); 30fps (704×576), 30fps (352×288), 30fps (320×240) |
| Video Bitrate | 32K ~ 12M |
| ROI Encoding | Supported |
| Power-off Memory | Restore to the position(keep 3 minutes) before power off |
| PU access protocol | ONVIF 2.2 |
| network protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE |
| Multiple streams | Main Stream/Sub Stream |
| Communication Interface | 1 RJ45 10M/100M adaptable Ethernet interface |
| Audio interface | 1-channel audio input/1-channel audio Output |
| Audio Encoding Format | G.711/G.726/MP2L2 |
| Voice communication | Voice Intercom (Pick-up is needed), Voice broadcasting, Channel Associated Voice |
| Storage Interface | Micro SD Card (32G) |
| Security Measures | User authentication (ID and PW),Host authentication (MAC address), HTTPS Encryption, IEEE 802.1x NAC |
| Front-end Recording | Support SD card schedule recording, alarm recording, and local playback |
| MTU | Default: 1500 (configuration range: 1280 ~ 1500) |
| Alarm Linkage | Alarm Trigger: motion detection, tampering alarm. Motion detection linkage: notify surveillance center, send e-mail, upload to the FTP, video linkage. Tampering detection linkage: notify surveillance center, send e-mail. |
| Max. Video Streams Accessinging | Support max. 6 channels video streams accessing |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language; Windows XP,Windows7,Windows8 |
| Other functions | Motion Detection, Privacy Masking, OSD, Digital Watermark, Front-end Capture, 3D positioning, IP Address Filtering |
| Power supply | AC24V ± 10% |
| Power Consumption | 22W max(Heater Max. 8W) |
| Operating temperature / humidity | Operating temperature : -30℃ ~ 65℃; Operating humidity: 5% ~ 90% (Non-condensing) |
| Protection Level | IP66 |
| Device Net Weight | 5kg |
| Physical Dimension (mm) | Φ220×305mm |
