Model: Huawei IPC6621-Z30-I 2.0-Megapixel 30x Speed Intelligent High-Definition IP Dome Camera
Details: Huawei IPC6621-Z30-I 2.0-Megapixel 30x Speed Intelligent High-Definition IP Dome Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC6621-Z30-I Overview

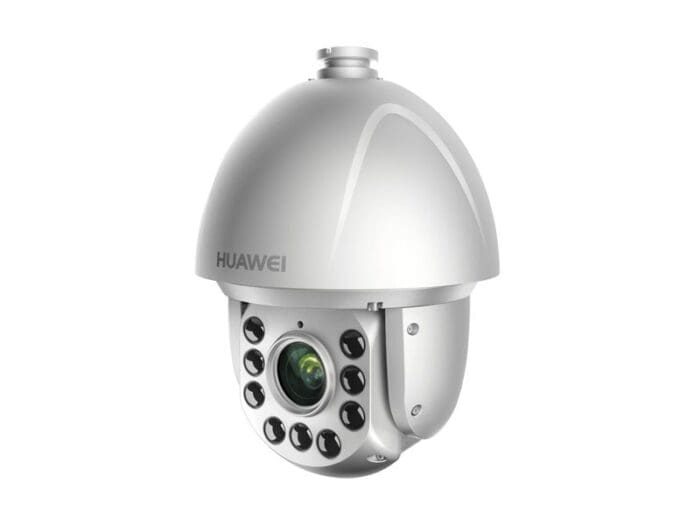

Quick Specs Figure 1 shows the appearance of IPC6621-Z30-I.
Table 1 shows the Quick Specs.
| Image sensor | 1/2.8″ 2.0 megapixel progressive scan CMOS image sensor |
| Effective pixels | 1920(H)×1080(V) |
| Minimum Illumination | Multicolor: 0.06lux (F1.6, AGC ON, 1/30s shutter, 50 IRE) |
| Day/Night mode | B/W: 0.006lux (F1.6, AGC ON, 1/30 shutter, 50 IRE) Automatic (ICR), multicolor, or B/W |
| Electronic shutter speed | 1/16000s to 1/25(1/30)s |
| White balance | Auto/Auto-Track/Indoor/Outdoor/Manual/Auto Sodium Lamp 86dB |
| Wide dynamic range | 86dB |
| Backlight compensation | Supported |
| Highlight compensation | Supported |
| Noise Reduction | Self-adaptive to 2D or 3D DNR (digital noise reduction) |
| Defogging | Supported |
| Infrared lamp | A maximum infrared radiation distance of 120 meters |
| Focal length | 4.3mm ~ 129mm |
| Zoom | Optical zoom:30X, Digital zoom:20x |
| Aperture | F1.6 ~ F4.7 |
| Minimum object distance | 100 mm (Wide), 1200 mm(Tele) |
| Angle of view | Horizontal: 65.1°(Wide) to 2.3°(Tele); Vertical: 38.4°(Wide) to 1.4°(Tele) |
| Rotation angle | Horizontal: 0° to 360°; Vertical: –10° to +90° |
| Horizontal rotation speed | Manual: 0.1°/s to 220°/s ; Preset position: ≥ 240°/s |
| Vertical rotation speed | Manual: 0.1°/s to 120°/s ; Preset position: ≥ 200°/s |
| Tour scan | Eight scan lines and 32 preset positions for each scan line |
| Pattern scan | A maximum of fi scan lines and 10 minutes for each scan line |
| Park Action | Home position, preset position tour, pattern scan, horizontal scan, vertical scan, random scan, frame scan, and panoramic scan |
| preset positions | 256 |
| Video compression standard | H.264 High Profile/Main Profile/Baseline Profile, MJPEG |
| Resolution and Frame rate | 1920×1080, 1280×720, 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC); H.264, MJPEG: Full Frame Rate (30fps, 25fps), 20fps ~ 1fps |
| Video bit rate | 1080p: 1Mbps ~ 8Mbps, 720p: 512Kbps ~ 8Mbps, D1: 300Kbps ~ 4Mbps, CIF: 100Kbps ~ 1Mbps |
| Intelligent analysis | Tripwire detection, loitering detection, intrusion detection, abandoned object detection, and removed object detection |
| Stream package | Basic packages: HD image quality, bandwidth balance, low bandwidth, and mobile device; Four customized packages |
| Privacy mask | A maximum of two rectangular mosaic areas; A maximum of eight rectangular black areas; Panoramic privacy mask |
| Image quality adjustment | H.264: CBR controlled by streams and VBR controlled by stream upper limit (selectable image quality); MJPEG: JPEG quality (QP) control |
| Image correction | Mirror/Flip/Mirror&Flip |
| PU access protocol | ONVIF 2.2, HUAWEI SDK |
| Network protocol | TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP(V1/V2/V3), 802.1x, QoS |
| Multiple streams | Three types of streams |
| Communication port | One RJ-45 10/100 Mbit/s self-adaptive Ethernet port, One RS-485 port |
| Alarm port | 8-channel alarm input and 2-channel alarm output |
| Audio port | 1-channel audio input and RCA audio port |
| Audio encoding format | G.711a/G.711u/G.726 |
| Voice communication | Voice intercom (a sound pickup is required), Voice broadcast, Channel- associated voice |
| Analog video output | BNC interface ; 1-channel hybrid analog video output through the CVBS interface |
| Maximum access users | 10 (allows users to obtain a maximum of four channels of 1080P video streams at the same time) |
| Storage interface | Micro SD cards (configured additionally); A maximum capacity of 32 GB; Speed class: ≥ 4 |
| Security mode | User name and password authentication, 802.1x (MD5 Challenge), and PKI digital certificate, IP address filtering, Digital watermark |
| Media security | Stream encryption using the AES128/192/256 encryption algorithm |
| Data transmission optimization | Bit rate stream smoothing, Self-adaptive bandwidth, MTU configuration,QoS configuration |
| Alarm linkage | When detecting alarms such as motion detection, lens block, and Boolean value input, the system automatically links Boolean value output, invoke preset positions, or enable tour tracks. |
| Browser | IE8/IE9/IE10, Windows XP, Windows 7, Windows 8 |
| Others | Quick positioning; 3D positioning; Local recording on web pages; Motion detection; ROI |
| Power supply | DC24V±25%, AC24V±30% |
| Power consumption | Typical consumption: 18.5 W Maximum consumption: 61 W (heater and infrared lamp enabled) |
| Operating environment | Operating temperature: -40ºC ~ 60ºC; Relative humidity: 5% to 90% (without condensation) |
| Weather proof rating | IP66 |
| Net weight | 4.5kg |
| Physical dimensions (mm) | ø237.3mm x 327.1mm |
