ITC215-PW4I-LZF27135
Model: ITC215-PW4I-LZF27135 – Dahua Entrance & Exit Control Products
Details: Dahua 2 Megapixel Full HD AI Access ANPR Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ITC215-PW4I-LZF27135 Overview

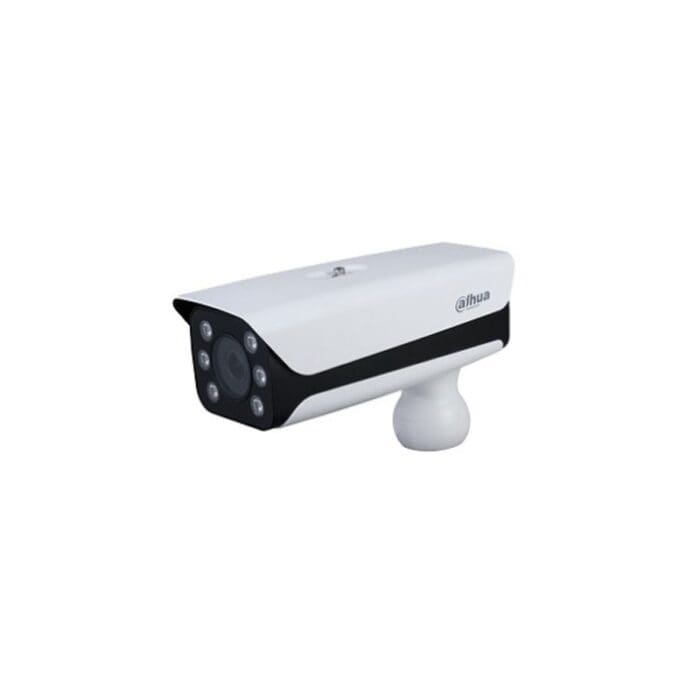

Quick Specs Figure 1 shows the appearance of ITC215-PW4I-LZF27135.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8 inch 2 Megapixel CMOS |
| Effective Pixels | 2MP, 1920(H) x 1080(V) |
| Scanning System | Progressive |
| Minimum Illumination | 0. 005Lux/F1.3 |
| Electronic Shutter Speed | 1/50~1/10000 |
| White Light Distance | Up to 12M |
| White light LEDs | 6 |
| Lens Type | Motorized/ Auto Iris(DC) |
| Mount Type | Board-in Type |
| Focal Length | 2.7mm~13.5mm |
| Max Aperture | F1.3 |
| Angle of View | H: 119?~ 32? V:65 ? ~18? |
| Focus control | Auto |
| ANPR Distance | 3-8M |
| LPR Function | Embedded with Deep learning LPR engine |
| Vehicle Detection | Supports vehicle video detection with high detection rate; supports vehicle direction detection |
| Vehicle data structuring | license plate recognition, vehicle size, vehicle color detection and etc. |
| Vehicle size detection | Supports 11 vehicle sizes detection:large bus, heavy truck, medium truck, sedan, minivan, light truck, SUV, MPV, medium bus, pick-up and minicar. |
| Vehicle color detection | Supports 11 colors detection(daytime):white, black, blue, red, yellow, green, pinkish purple, gray, brown, orange and silver. |
| Detection model | Supports Video detection or loop detection |
| Snapshot | Overview and cutout of plate for picture |
| OSD overlay | Time, place,plate number, etc. |
| White list | 10000 records database inside the camera |
| Barrier control | Relay out to control the barrier |
| Audio Interface | 1 Input/1 Output |
| RS485 | 2 |
| Alarm | 3/3 channel In/Out |
| Compression | H.265/H.264M/H.264H/H.264B |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576) |
| Frame Rate | Main Stream: 1080P(1 ~ 25/30fps)Sub Stream: 720P/ D1 (1 ~ 25/30fps) |
| Bit Rate Control | CBR, VBR |
| Bit Rate | 32 ~ 16384 Kbps |
| Dual Stream | Support, Main stream and sub stream |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Ethernet | RJ-45 (100/1000Base-T) |
| Interoperability | CGI, SDK, Onvif |
| Max. User Access | 20 |
| Web Viewer | IE8,IE9,IE10,IE11,Chrome V33, V41 |
| Protocol | IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS |
| Edge Storage | Micro SD, Max 64GB Status Display Local PC for Instant Recording |
| Management Software | PMS |
| Certifications | CEFCC |
| Operating Conditions | -30°C~+65°C, Less than 90% RH |
| Ingress Protection | IP67 |
| Dimensions(no bracket) | 297mm × 124mm× 108mm |
| Dimension(with bracket) | 482mm × 124mm× 196mm |
| Net Weight | 1.9kg(no bracket)/3.3kg(with bracket) |
| Power Supply | DC12V, PoE +(802.3at) |
| Power Consumption | <24W (with white light on, motorized lens working) |
