Sold out
ITSE0400-GN5A-B
Model: ITSE0400-GN5A-B – Dahua Traffic Enforcement Products
Details: Dahua Edge Storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ITSE0400-GN5A-B Overview

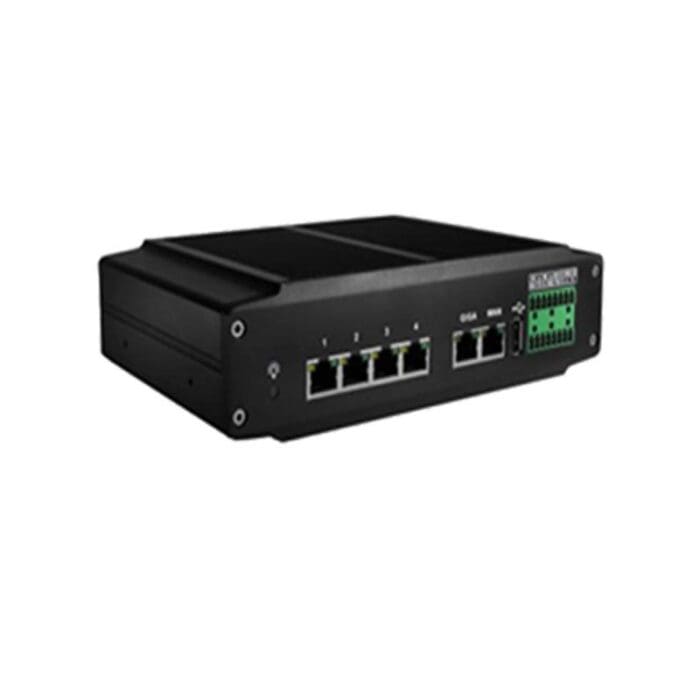

Quick Specs Figure 1 shows the appearance of ITSE0400-GN5A-B.
Table 1 shows the Quick Specs.
| Processor | Industrial embedded micro controller |
| OS | Embedded Linux |
| UI | WEB |
| Video input | 4 channel IP compression HD video input. |
| Alarm input | 2 channel |
| Alarm output | 2 channel, relay output |
| Storage | 2 SATA ports for 2.5 inch HDD |
| RS232 serial port | 2, used for debugging serial data |
| RS485 port | 1, support multiple protocols |
| USB port | External USB 2.0 interface |
| Ethernet port | Dual NIC, 2 RJ45 100M/1000M adaptive Ethernet port, 4 RJ45 100M switching network interface |
| Clock | Built-in real-time clock |
| Light | 1 state indicator light |
| Installation | Desktop installation |
| Power supply | DC 12V±10% |
| Power switch | 1 power switch, on the rear panel |
| Power consumption | <20W(without HDD)/ <30W(with HDD)/ <40W(heated, below -10℃) |
| Working Temperature | -30℃~+70℃ |
| Working humidity | 10% ~ 90% |
| Dimensions | 210×138×52mm |
| Atmospheric pressure | 86kpa ~106kpa |
| CE | SECE1607121 |
| FCC | SEFV1607121 |
Get more information
Do you have any question about the ITSE0400-GN5A-B?
Contact us now via Live Chat or sales@metafinitivetech.com
