N54A4P
Model: N54A4P – Dahua 24 Channel NVR
Details: 4K 24CH 1.5U NVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
N54A4P Overview

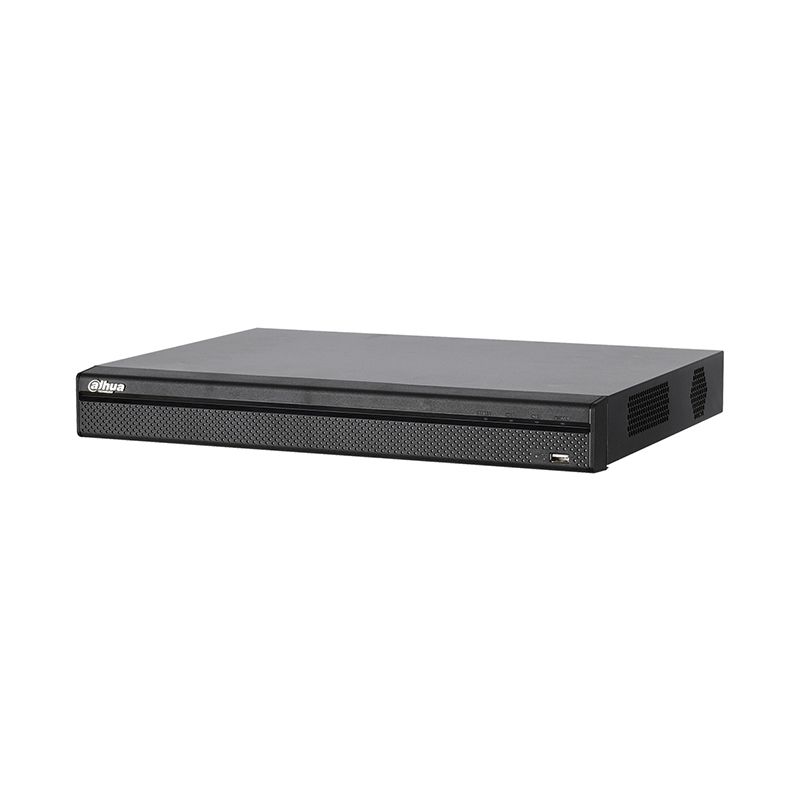

Quick Specs Figure 1 shows the appearance of N54A4P.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | N54A4P |
| Resolution | 4K |
| Channels | 24 |
| Form Factor | 1.5U |
| Video Compression | H.265/H.264/MJPEG |
| Max Decoding Capability | 4-ch 8MP@30fps, 8-ch 1080P@30fps |
| Multi-screen Display | 1/4/8/16/24/32 |
| Network Bandwidth | 320 Mbps |
| Network Interface | 2 Gigabit Ethernet Ports |
| HDMI Output | 2 (up to 4K) |
| VGA Output | 1 (up to 1080P) |
| Storage Capacity | Up to 8 SATA III with hot-swap support |
| USB Ports | 2 USB 3.0, 2 USB 2.0 |
| RAID Support | RAID 0/1/5/6/10 |
| Power Supply | AC 100~240V, 50-60Hz |
| Operating System | Embedded Linux |
| Operating Temperature | -10��C ~ +55��C (+14��F ~ +131��F) |
| Operating Humidity | 10%~90% RH |
| Power Consumption | < 40W (without HDD) |
| Dimensions | 17.3″ x 16.1″ x 2.9″ (440 mm x 410 mm x 75 mm) |
