Neutral-MPO-12C-TC-G.652D
Model: MPO/MTP Management Rack and Cassette
Details: MPO,12cores, ABS+PC cassette, G.652D (including 6*DLC adapters and 1*MPO adapter, 12cores MPO-LC harness cable)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Neutral-MPO-12C-TC-G.652D Overview

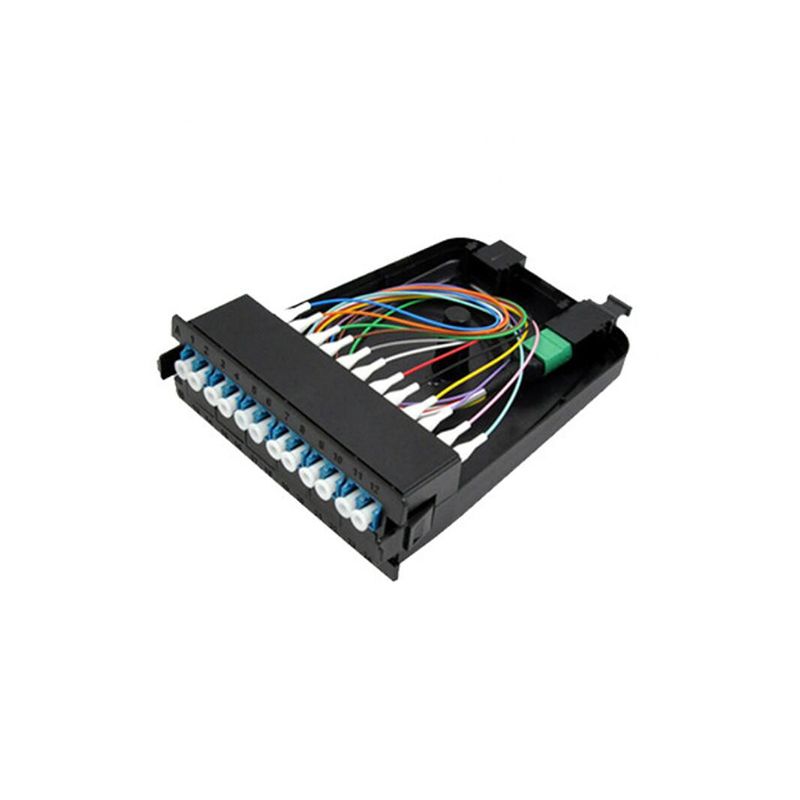

Quick Specs Figure 1 shows the appearance of Neutral-MPO-12C-TC-G.652D.
Table 1 shows the Quick Specs.
| Item | Parameter |
| Applicable connector type | MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
| Fiber type | Single-mode (G.652D;G.657A) |
| Working wavelength range | 1250~1650nm |
| Test wavelength | 1310nm, 1550nm |
| End face grinding type | MPO end: APC; |
| Branch end connector: UPC or APC | Branch end connector: UPC or APC |
| Insertion loss (IL) | MPO end: typical value≤0.50dB, maximum value≤0.70dB, low value(optional)≤0.35dB |
| Return loss (RL) | MPO end:APC≥50dB |
| Branch-end connector：UPC≥50dB,APC≥60dB | Branch-end connector：≥35dB |
| Optical cable type | MPO end: ribbon optical cable, bundle optical cable; |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | MPO: plug and unplug 500 times, typical change value ≤0.20dB |
| Vertical tension | ≥120N (except 0.9mm optical cable) or customer requirements |
| Working temperature | -10℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Cable Jackets Color Codes | SM: Yellow; OM4: Magenta; OM3: Aqua |
| Connectors Color Codes | SM: OS2: Green; OM4/OM3: Aqua |
| Boots Color Codes | 8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
| Model | RS-MPO-IRA-4C-1U |
| Max. No. of Cores | 96 |
| Material | Cold rolled steel |
| Dimensions (mm) | 123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
| Weight (kg) | 3 |
| Other | Pls. choose MPO/MTP Cassette model |
| Max. No. of Modules | 4 |
| Approx Dimensions (mm) | 425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
