NVR4108HS-P-4KS2
Model: NVR4108HS-P-4KS2 – Dahua 8 Channel NVR
Details: 8 Channel Compact 1U 4PoE 4K&H.265 Lite Network Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NVR4108HS-P-4KS2 Overview

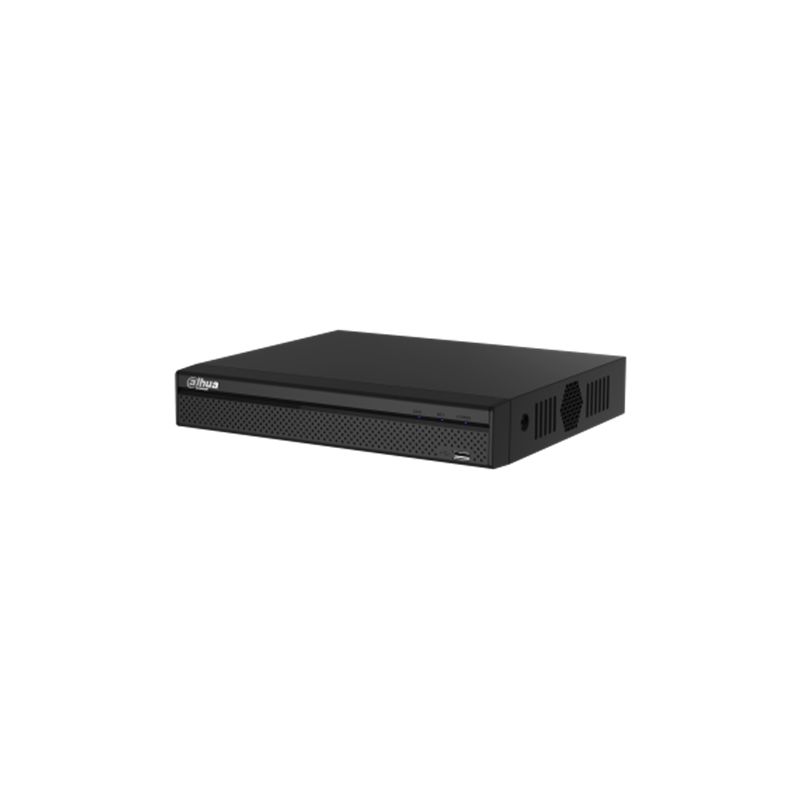

Quick Specs Figure 1 shows the appearance of NVR4108HS-P-4KS2.
Table 1 shows the Quick Specs.
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 8 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Interface | 1 RJ-45 Port (10/100Mbps) |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Decoding Capacity | 2ch@4K(30fps)/8ch@1080P(30fps) |
| Multi-screen Display | 1/4/8/9 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18),Video Loss and Tampering |
| Alarm input | N/A |
| Alarm output | N/A |
| Playback | 1/4/9 |
| Search Mode | Time /Date, MD and Exact Search(accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Ethernet Port | 1 Independent 100Mbps Ethernet Port |
| PoE | 4 Ports(IEEE802.3at/af) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Internal HDD | 1 SATA III Port, Up to 6 TB capacity for each HDD |
| HDD Mode | Single |
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Power Supply | DC48V/1.5A |
| Power Consumption | NVR: <7.5W (Without HDD) |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Dimensions | Compact 1U, 260mm×224.9mm×47.6mm(10.2″ x 8.9″ x 1.9″) |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL60950-1 |
