NVR4216-I
Model: NVR4216-I – Dahua 16 Channel NVR
Details: Dahua 16 Channel 1U AI Network Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NVR4216-I Overview

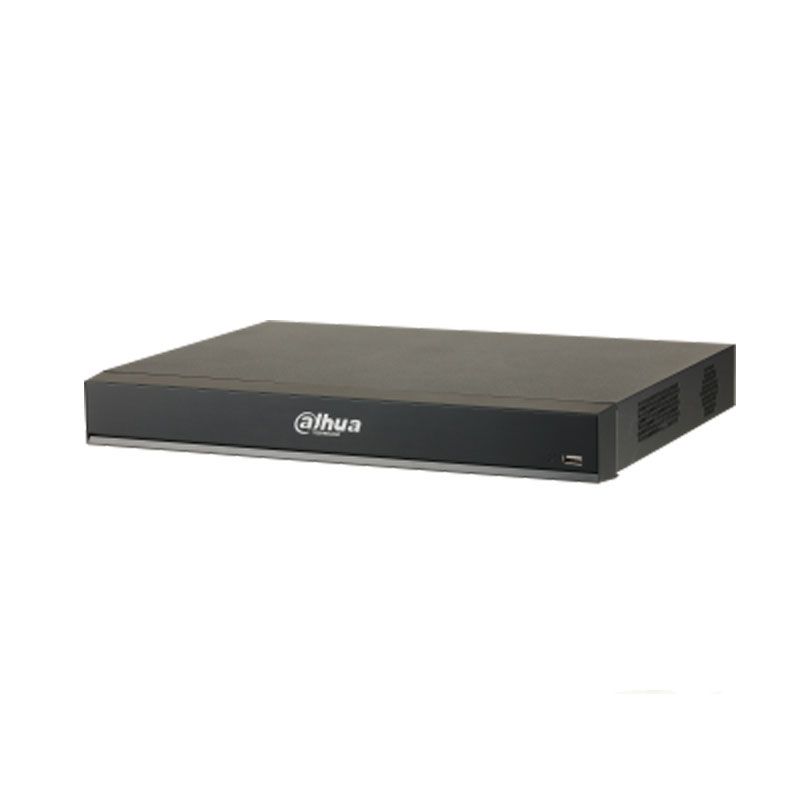

Quick Specs Figure 1 shows the appearance of NVR4216-I.
Table 1 shows the Quick Specs.
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Performance | Max 12 face pictures /sec processing |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Up to 8 target face images search at same time,similarity threshold can be set for each target face image. |
| Stranger Mode | Detect strangers’ faces(not in device’s face database).Similarity threshold can be set manually. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries?ions and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips |
| IP Camera Input | 16 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Interface | 1 RJ-45 Port (10/100/1000Mbps) |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Decoding Capability | 2-ch@8MP(30fps), 8-ch@1080P(30fps) |
| Multi-screenDisplay | 1/4/8/9/16 |
| Bandwidth | 200Mbps (80Mbps when AI function enabled, based on private protocol) |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Record Mode | Manual, Schedule (Continuous, MD(Motion Detection) , Alarm, IVS) |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change |
| Alarm Input | 4 Channel |
| Alarm Output | 2 Channel |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, Xunmei, Samsung, Sanyo, Sony, Watchnet and more |
| PoE | NA |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP,RTSP, UDP,SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS,FTP, Alarm Center, IP Search (Support IP camera,DVR, NVS, etc.), P2P |
| Max. User Access | 128 users |
| Mobile App | iPhone, iPad, Android |
| Interoperability | ONVIF (Profile S), SDK, CGI |
| Internal HDD | 2 SATA III Ports,Up to 8 TB capacity for each HDD |
| eSATA | NA |
| USB | 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) |
| RS232 | NA |
| RS485 | NA |
| Power Supply | Single, DC12V, 4A |
| Power Consumption | NVR: <2.9W (Without HDD) |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Dimensions | 1U, 375mm x 276mm x 56mm ;(14.8″ x 10.9″ x 2.2″) |
| Net Weight | 1.55kg (3.4lb) (without HDD) |
| Gross Weight | 2.81kg (6.2lb) (without HDD) |
| CE | EN55035, EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
