NVR5216-8P-I
Model: NVR5216-8P-I – Dahua 16 Channel NVR
Details: 16Channel 1U 8PoE AI Network Video Recorder;> Up to 16 Channel perimeter protection;Up to 4 Channel video stream face recognition;Up to 24 face pictures /sec processing;Up to 20 face databases with 100,000 face images in total;1-8 PoE Ports support ePoE & EoC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NVR5216-8P-I Overview

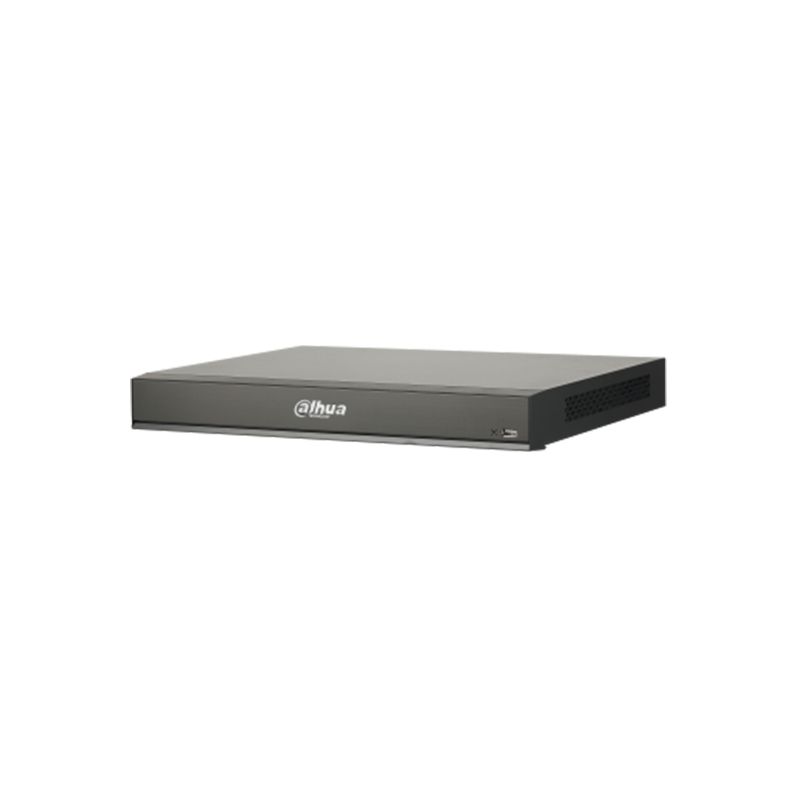

Quick Specs Figure 1 shows the appearance of NVR5216-8P-I.
Table 1 shows the Quick Specs.
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Performance | Max 22 face pictures/sec processing (modeling and comparing) |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Support search target video by metadata. |
| Stranger Mode | Detect strangers’ faces (not in device’s face database).Similarity threshold can be set manually. |
| Database Management | Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips |
| Face | Gender, age, glasses, beard, mouth mask, expression. |
| Vehicle | Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region. |
| Human Body | Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella. |
| Non-motor Vehicle | Type, color, number of passengers, helmet. |
| IP Camera Input | 16 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Interface | 1 RJ-45 Ports (10/100/1000 Mbps) |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Decoding Capability | 4-ch@8MP (30fps), 16-ch@1080P (30fps) |
| Multi-screen Display | 1/4/8/9/16 |
| Bandwidth | 320 Mbps (160 Mbps when AI function enabled) |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Record Mode | Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS) |
| Record Interval | 1–120 min (default: 60 min), Pre-record: 1–30 sec, Post-record: 10–300 sec |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change |
| Alarm input | 4 Channel |
| Relay Output | 2 Channel |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Third-party Support | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more |
| PoE | 8 ports (IEEE802.3af/at)1-8 ports support ePoE & EoC |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Max. User Access | 128 users |
| Mobile App | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Internal HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| eSATA | N/A |
| USB | 2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Power Supply | Single, AC100V–240V, 50–60 Hz |
| Power Consumption | NVR: <15.6W (Without HDD) |
| Fan | Smart fan, automatically adjust running speed |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86–106kpa |
| Storage Conditions | 0°C to +40°C (+32°F to +104°F), 30–85% RH |
| Dimensions | 1U, 375.0 mm × 327.4 mm × 53.0 mm (14.76″ × 12.89″ × 2.09″) |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
