NVR616R-128-4KS2

Original price was: $2,598.00.Current price is: $2,468.10.

Model: NVR616R-128-4KS2 – Dahua 128 Channel NVR
Details: 128 Channel Ultra 4K H.265 Network Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: NVR616R-128-4KS2 Categories: , ,
Description

NVR616R-128-4KS2 Overview

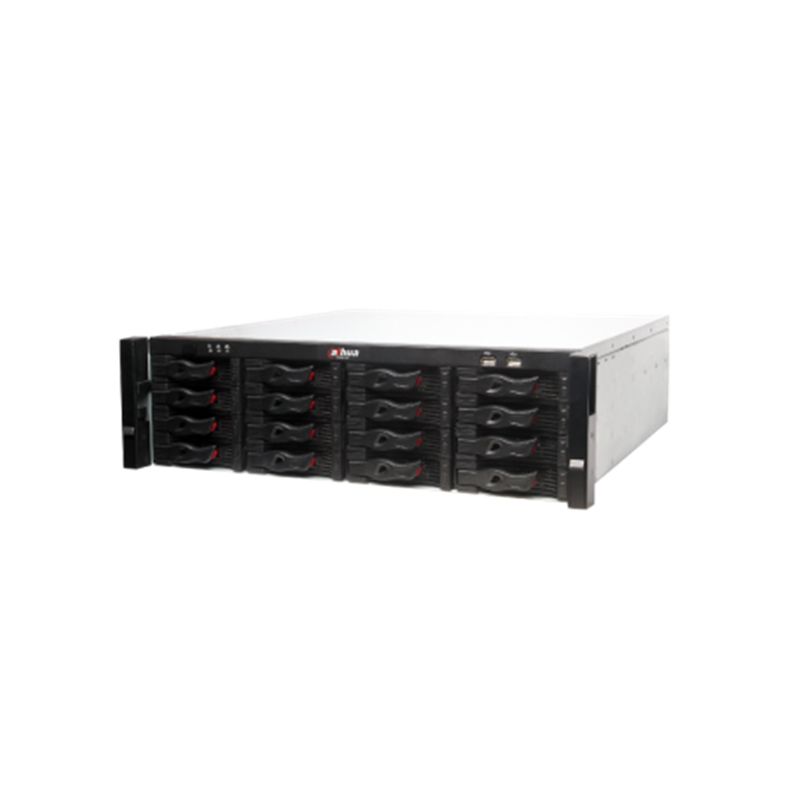

Quick Specs Figure 1 shows the appearance of NVR616R-128-4KS2.

Table 1 shows the Quick Specs.

Main Processor Intel Quad-core Processor
Operating System Embedded LINUX
IP Camera Input 128 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Interface 4 RJ-45 Ports (10/100/1000Mbps)
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Multi-screen Display 1st Screen: 1/4/8/9/16/25/362nd Screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Compression H.265/H.264/MJPEG
Record Rate 384Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.
Playback 128 Mbps in Raid 5 Mode;64 Mbps in single HDD Mode
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Ethernet Port 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface 2 Giga Optical Fiber Interface
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Internal HDD 16 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS 1 Mini SAS Port, for Storage Expansion
Front Cover Support Hot-swap
USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Power Supply AC100V ~ 240V, 50 ~ 60 Hz, Redundant
Power Consumption <51W (Without HDD)
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Dimensions 3U, 485mm x 512.9mm x 133.2mm (19.1″ x 20.2″ x 5 .2″)
Installation Rack-mounted
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1 and CAN/CSA C22.2 No.60950-1
