Sold out
PFM923I-5EUN-C
Model: PFM923I-5EUN-C – Dahua Cameras Accessories
Details: Dahua 305m UTP CAT5E LSZH CPR E Cable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM923I-5EUN-C Overview

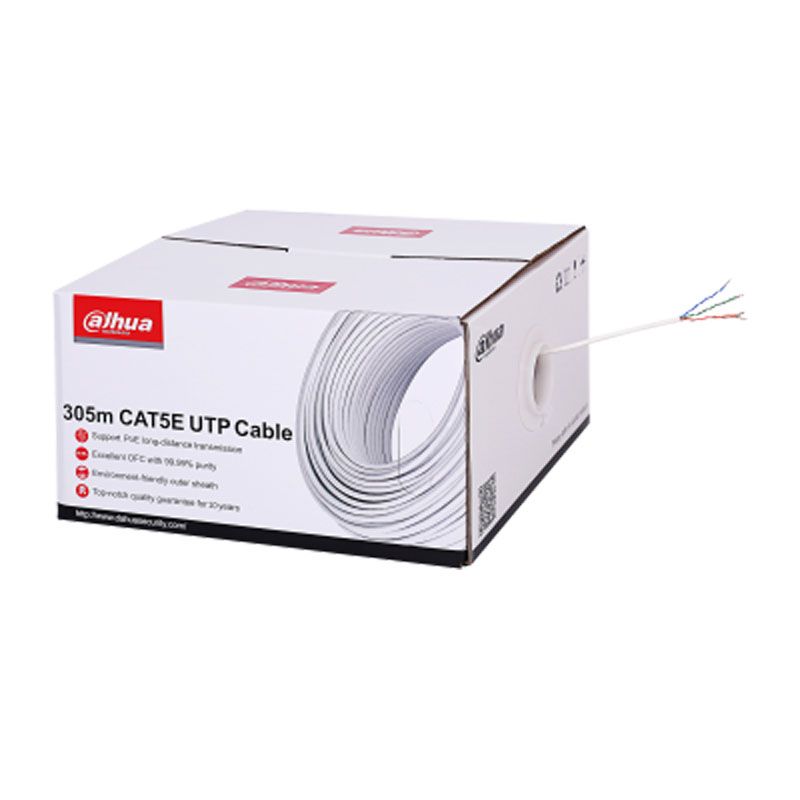

Quick Specs Figure 1 shows the appearance of PFM923I-5EUN-C.
Table 1 shows the Quick Specs.
| Model | DH-PFM923I-5EUN-C |
| Conductor | Material |
| Structure | 4P*0.45±0.01mm |
| Insulation | Tensile strength |
| Min. average thickness | 0.4mm |
| Diameter | 4.6±0.5mm |
| Color(4 Pairs) | White/Blue, Blue; White/Orange, Orange; White/Green, Green;White/Brown, Brown |
| Rip Cord | Yes |
| Jacket | Tensile strength |
| surface | Smooth, full and tight |
| Color | White |
| General | Length |
| Packaging dimension | 360mmx360mmx210mm(14.17”x14.17”x8.27”) |
| Weight (with packaging) | 8.5kg(18.74lb) |
| Elongation at break | Before aging: ≥125%After aging: ≥100% |
| Peeling property | No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. |
| Aging condition | 100℃*24h*7d |
| Characteristic Impedance (1-250MHz) | 100±15Ω |
| DC Resistance | ≤12.0Ω/100m |
| Max. Unbalance Rate of Line Pairs’ Direct Current | ≤5% |
| Time Delay | ≤45ns/100m |
| Max. Mutual Capacitance | 5.6nF/100m |
| Min. Insulation Resistance | 5000M?·km |
