PFM930I-6N
Model: PFM930I-6N – Dahua Other Products
Details: 200m RG6 Coaxial Cable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PFM930I-6N Overview

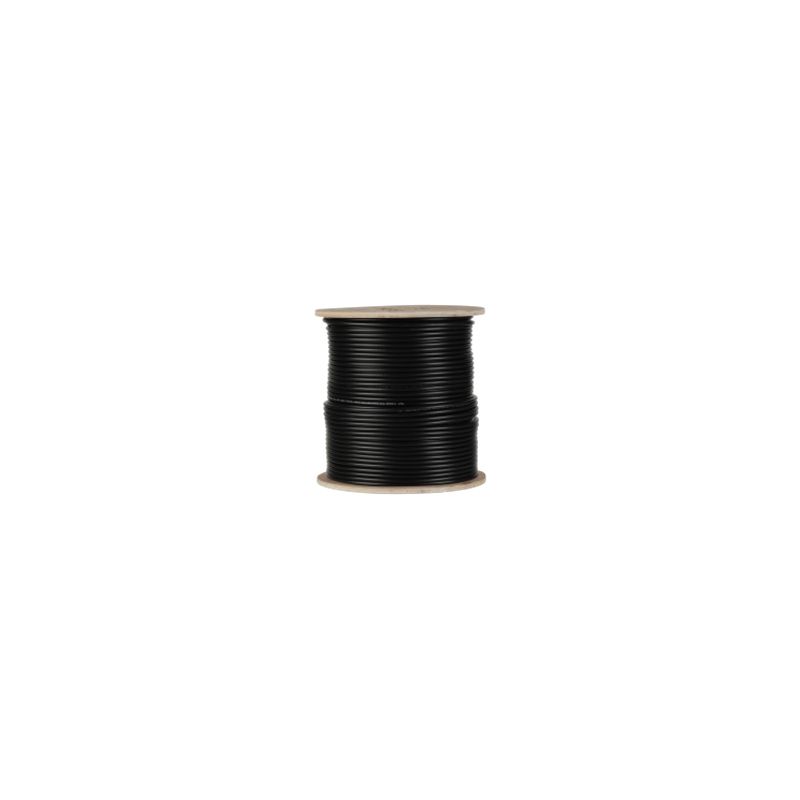

Quick Specs Figure 1 shows the appearance of PFM930I-6N.
Table 1 shows the Quick Specs.
| Conductor | Material |
| Wire gauge | 18AWG (1.02mm) |
| Insulation | Material |
| Diameter | 6.9mm±0.2mm |
| Tape | Material |
| Thickness | 0.026mm |
| Braid | Braiding Material |
| Braiding Structure | 0.12mm*64(16*4) |
| Jacket | Material |
| Min.average thickness | 0.78mm |
| Color | Black |
| Length | 200m (656.17ft) |
| Mark spacing | 1000mm |
| Impedance | 75Ω±3Ω |
| General | Working temperature |
| Storage temperature | -40℃~+80℃(-40℉~+176℉) |
| Packaging dimension | Ф280mm*240mm(Ф11.02” x9.45” ) |
