PFS4226-24ET-360
Model: PFS4226-24ET-360 – Dahua Other Products
Details: 24-Port PoE Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PFS4226-24ET-360 Overview

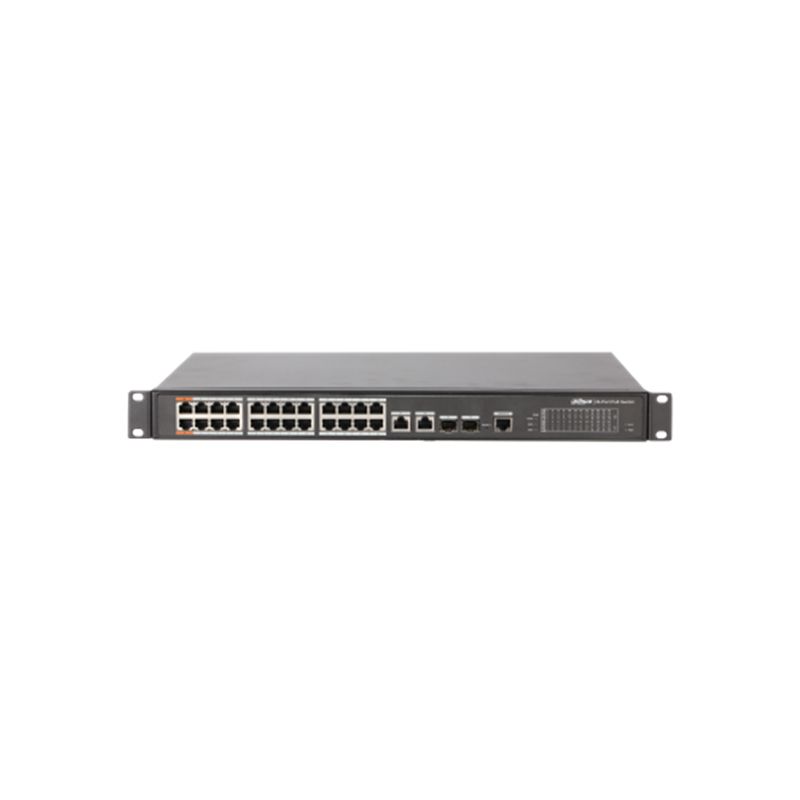

Quick Specs Figure 1 shows the appearance of PFS4226-24ET-360.
Table 1 shows the Quick Specs.
| Ethernet Ports | Two (2) 10/100/1000 Base-T (Combo Port)Two (2) 1000 Base-X (Combo Port)24 x 10/100 Base-T Ports (PoE Power Supply) |
| PoE Power Consumption | Ports 1 and 2: Hi-PoE (60 W), PoE+, PoEMaximum per Port:≤30 WTotal Power Consumption:≤360 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Power Requirements | 100 VAC to 240 VAC |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Application Humidity | 10% to 90% |
| Lightning Protection | Common Mode: 4 KVDifferential Mode: 2 V |
| Dimensions (W x D x H) | 440.0 mm x 300.0 mm x 44.0 mm (17.32 in. x 11.81 in. x 1.73 in.) |
| Safety | ENÂ 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013UL 60950-1 + CAN/CSA C22.2 No. 60950-1-07 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart BEN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015,EN 55032:2015, EN 6100-3-2:2014, EN 61000-3-3:2013 |
| System | Username/Password: admin/admin |
| PoE Budget | 360 W |
| MAC Table Size | 4K |
| VLAN | 802.1Q Standard VLAN |
| Spanning Tree | STP, RTSP |
| Port Aggregation | Static Link Aggregation, LACP Protocol |
| Port Mirroring | Many-to-One Port Mirroring |
| DHCP | DHCP-client Support |
| Long Distance Mode | Power and Data Transmission Distance up to 250 m (820.21 ft) |
| Flow Control | Half-duplex based on back pressure type control |
| Security Features | IP+MAC Binding, based on portIEEE802.1x Port Authentication |
| System Maintenance | One-key Recovery, Updated Packet Upload, System Log |
| QoS | High and Low Priority, WRR, 802.1P, DSCP,Supports priority according to protocol |
| Network Management | Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3 |
| PoE Management | PoE Setting (real-time port consumption) |
