PHOA6-EH
Model: PHOA6-EH – Dahua Display & Control LED Displays
Details: Dahua Outdoor Fixed LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHOA6-EH Overview

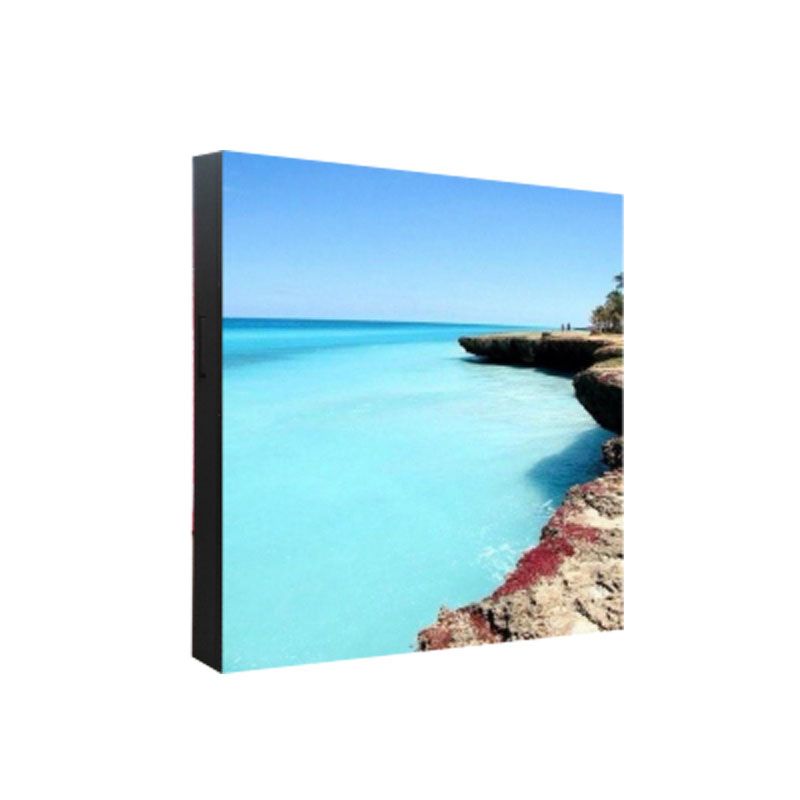

Quick Specs Figure 1 shows the appearance of PHOA6-EH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model Name | PHOA6-EH |
| Product Type | Outdoor Fixed LED |
| Pixel Pitch | 6mm |
| Brightness | 6000 nits |
| Refresh Rate | 1920Hz |
| Module Size | 320mm x 320mm |
| Resolution | 160 x 160 pixels |
| Viewing Angle | 140°(H)/140°(V) |
| Lifespan | 100,000 hours |
| Power Consumption (Max/Avg) | 650W/?O / 325W/?O |
| Ingress Protection | IP65 (front) / IP54 (back) |
| Operating Temperature | -20°C to 50°C |
| Humidity | 10%~90% RH |
| Signal Input | DVI, HDMI, SDI |
| Control System | NovaStar |
| Mounting Type | Fixed Installation |
| Cabinet Material | Aluminum |
| Maintenance Type | Rear Access |
| Control Distance | 100 meters (Unshielded), 500 meters (Shielded) |
| Certification | CE, RoHS, FCC |
