Sold out
PHRIA2.84-EH
Model: PHRIA2.84-EH – Dahua Display & Control LED Displays
Details: Dahua Indoor Rental LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHRIA2.84-EH Overview

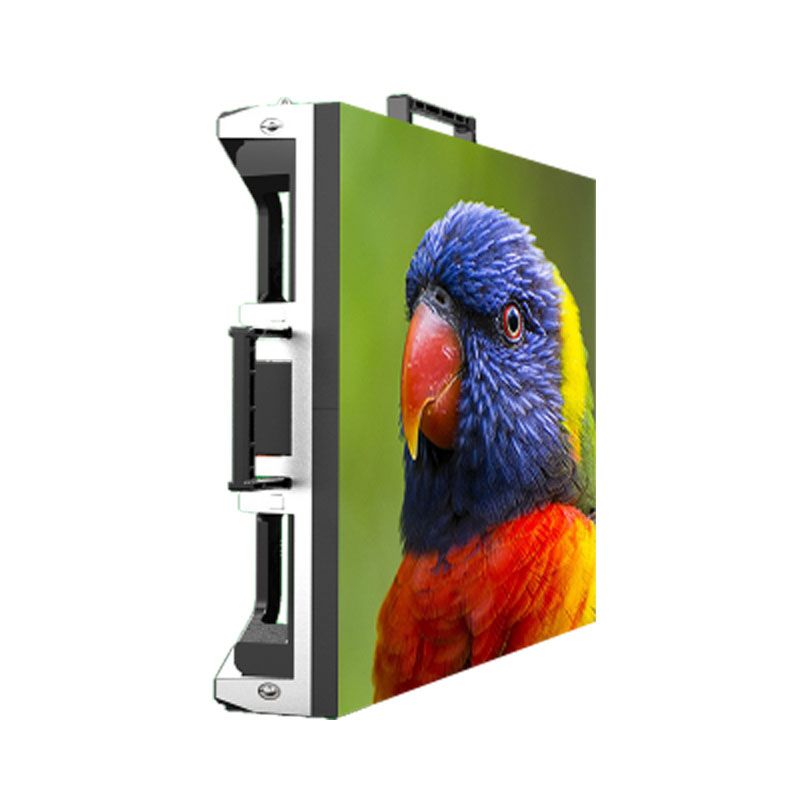

Quick Specs Figure 1 shows the appearance of PHRIA2.84-EH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | Indoor Rental LED |
| Pixel Pitch | 2.84 mm |
| Module Size | 250 x 250 mm |
| Module Resolution | 88 x 88 pixels |
| LED Configuration | SMD 3-in-1 |
| Brightness | ° 800 cd/m2 |
| Refresh Rate | ° 1920 Hz |
| Viewing Angle | H: 140°, V: 120° |
| Power Consumption (Max) | ° 600 W/m2 |
| Power Consumption (Avg) | ° 200 W/m2 |
| Input Voltage | 110-220V AC °15%, 50/60 Hz |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | 10-90% RH |
| Panel Material | Die-casting Aluminum |
| Panel Dimension | 500 x 500 mm |
| Panel Resolution | 176 x 176 pixels |
| Ingress Protection | IP30 (front), IP40 (rear) |
| Control System | NovaStar |
| Certifications | CE, EMC, LVD |
| Serviceability | Front and Rear |
Get more information
Do you have any question about the PHRIA2.84-EH?
Contact us now via Live Chat or sales@metafinitivetech.com
