SD22204UE-GN
Model: SD22204UE-GN – Dahua Other Products
Details: 2MP 4x Starlight PTZ Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD22204UE-GN Overview

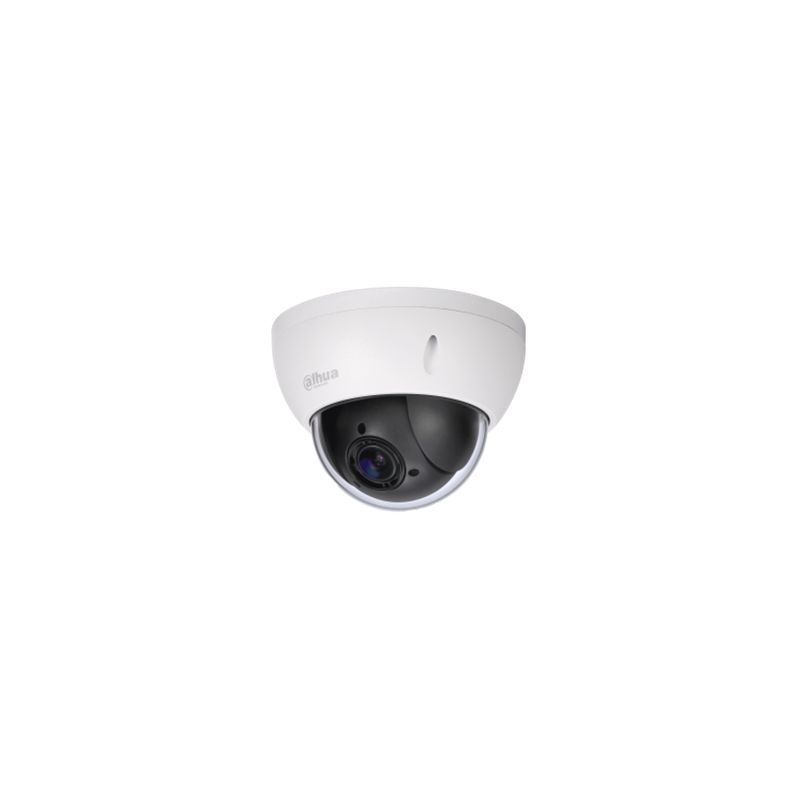

Quick Specs Figure 1 shows the appearance of SD22204UE-GN.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8” STARVISTMCMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| RAM/ROM | 256M/128M |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Focal Length | 2.7mm~11mm |
| Max. Aperture | F1.6 |
| Angle of View | H: 112.5°~ 30° |
| Optical Zoom | 4x |
| Focus Control | Auto/Manual |
| Close Focus Distance | 100mm~ 1000mm |
| Detect | Observe |
| 124.1m (407ft) | 49.7m (163ft) |
| Pan/Tilt Range | Pan: 0°~ 355°; Tilt: 0°~ 90° |
| Manual Control Speed | Pan: 0.1°~100°/s; Tilt: 0.1°~60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Presets | 300 |
| PTZ Mode | 8 Tour(up to 32 preset per tour) |
| Speed Setup | Human-oriented focal Length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/Tour if there is no command in the specified period |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Event Trigger | Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly |
| Auto Tracking | N/A |
| IVS | Tripwire, Intrusion,Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection |
| Compression | H.265/H.264/MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main stream: 1080P/720P/D1 (1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization (EIS) | N/A |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
| Wifi | N/A |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Video Interface | N/A |
| RS485 | N/A |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Power Supply | DC 12V/1.5A, PoE(802.3af) |
| Power Consumption | 5.5W |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | Φ122 (mm) x 89 (mm) |
