SD59131I-HC-S3
Model: SD59131I-HC-S3 – Dahua 1MP PTZ
Details: 1MP 31x Starlight IR PTZ HDCVI Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD59131I-HC-S3 Overview

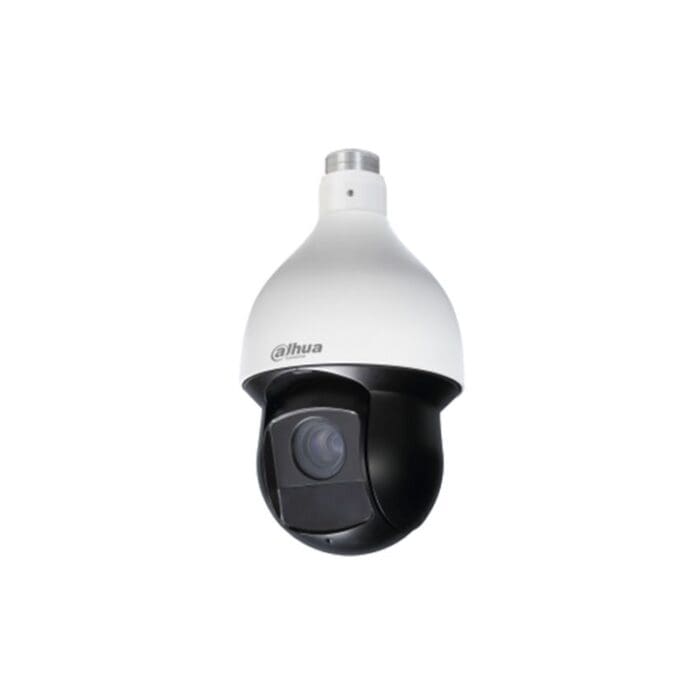

Quick Specs Figure 1 shows the appearance of SD59131I-HC-S3.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8�� STARVIS? CMOS |
| Effective Pixels | 1280(H) x 720(V), 1 Megapixel |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
| IR Distance | Up to 150m (492ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 4 |
| Focal Length | 4.8mm~150mm |
| Max. Aperture | F1.6 ~ F4.4 |
| Optical Zoom | 31x |
| Focus Control | Auto / Manual |
| Angle of View | H: 58.6�� ~ 2.0�� |
| Day/Night | Auto (ICR) / Color / B/W |
| Pan/Tilt Range | Pan: 0�� ~ 360�� endless; Tilt: -15�� ~ 90��, auto flip 180�� |
| Manual Control Speed | Pan: 0.1�� ~300�� /s; Tilt: 0.1�� ~150�� /s |
| Preset Speed | Pan: 400�� /s; Tilt: 300�� /s |
| Power Supply | 24 VAC/3A (��10%), PoE+ (802.3at) |
| Power Consumption | Max 25W (IR on, PTZ working) |
| Operating Temperature | �C40��C ~ 70��C (�C40��F ~ +158��F) |
| Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
| Dimensions | ��186.0mm��309.0mm (��7.32″��12.17″) |
| Net Weight | 5.5kg (12.13lb) |
