SD59225U-HNI
Model: SD59225U-HNI – Dahua 2MP IP Cameras
Details: 2MP 25x Starlight IR PTZ Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
SD59225U-HNI Overview

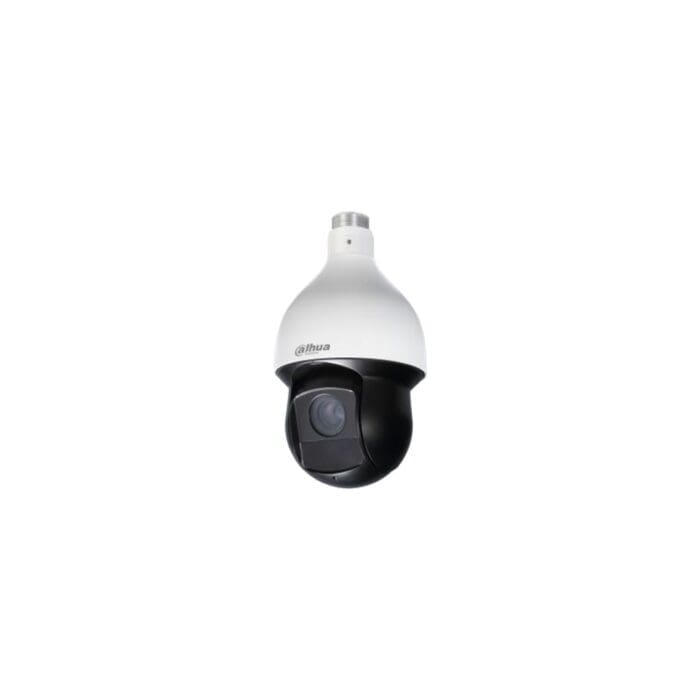

Quick Specs Figure 1 shows the appearance of SD59225U-HNI.
Table 1 shows the Quick Specs.
Image Sensor | 1/2.8” STARVIS™ CMOS |
Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
RAM/ROM | 1024M/128M |
Scanning System | Progressive |
Electronic Shutter Speed | 1/1s~1/30,000s |
Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
S/N Ratio | More than 55dB |
IR Distance | Distance up to 150m (492ft) |
IR On/Off Control | Auto/Manual |
IR LEDs | 4 |
Focal Length | 4.8mm~120mm |
Max. Aperture | F1.6 ~ F4.4 |
Angle of View | H: 62.8° ~ 2.6° |
Optical Zoom | 25x |
Focus Control | Auto/Manual |
Close Focus Distance | 100mm~ 1000mm |
Detect | Observe |
1613m(5292ft) | 646m(2119ft) |
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° |
Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
Preset Speed | Pan: 400° /s; Tilt: 300° /s |
Presets | 300 |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
Speed Setup | Human-oriented focal Length/ speed adaptation |
Power up Action | Auto restore to previous PTZ and lens status after power failure |
Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
Auto Tracking | Support |
IVS | Tripwire, Intrusion, Abandoned/Missing |
Advanced Intelligent Functions | Face Detection, Heat Map |
Compression | G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2 |
Streaming Capability | 3 Streams |
Resolution | 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
Frame Rate | Main stream: 1080P/1.3M/ 720P(1~50/60fps) |
Bit Rate Control | CBR/VBR |
Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
Day/Night | Auto(ICR) / Color / B/W |
Backlight Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto, ATW, Indoor, Outdoor, Manual |
Gain Control | Auto / Manual |
Noise Reduction | Ultra DNR (2D/3D) |
Motion Detection | Support |
Region of Interest | Support |
Electronic Image Stabilization (EIS) | Support |
Defog | Support |
Digital Zoom | 16x |
Flip | 180° |
Privacy Masking | Up to 24 areas |
Ethernet | RJ-45 (10Base-T/100Base-TX) |
Interoperability | ONVIF Profile S&G, API |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 users |
Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, DMSS |
Smart Phone | IOS, Android |
Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
Video Interface | N/A |
RS485 | N/A |
Audio I/O | 1/1 |
Alarm I/O | 2/1 |
Power Supply | AC24V/3A(±10%), PoE+(802.3at) |
Power Consumption | 13W,23W (IR on) |
Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
Ingress Protection | IP66 |
Vandal Resistance | N/A |
Casing | Metal |
Dimensions | Φ186(mm) x 309(mm) |
