-5%
SD59430I-HC-S2
Model: SD59430I-HC-S2 – Dahua 4MP PTZ
Details: 4MP 30x IR PTZ HDCVI Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD59430I-HC-S2 Overview

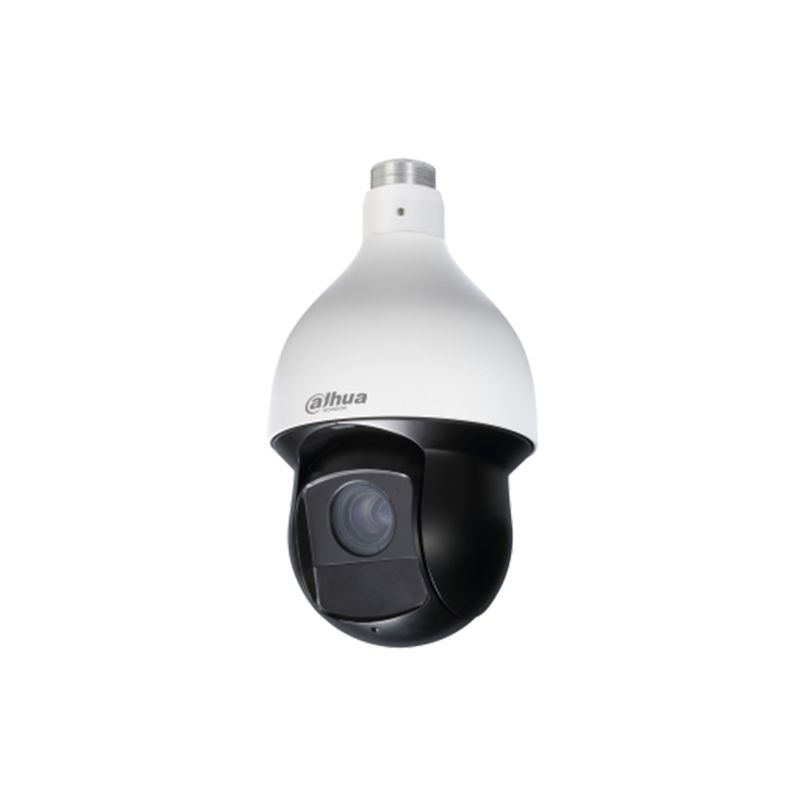

Quick Specs Figure 1 shows the appearance of SD59430I-HC-S2.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model Name | SD59430I-HC-S2 |
| Camera Type | PTZ HDCVI Camera |
| Resolution | 4MP |
| Optical Zoom | 30x |
| IR Distance | Up to 100 meters |
| Sensor Type | 1/3″ CMOS |
| Effective Pixels | 2592 (H) ?? 1520 (V) |
| Minimum Illumination | 0.005 Lux @ F1.6 (Color), 0 Lux @ F1.6 (IR on) |
| Day/Night Mode | Auto (ICR) / Color / B/W |
| Shutter Speed | 1/3s ~ 1/300,000s |
| IR Cut Filter | Yes |
| Lens | 4.5 mm ~ 135 mm |
| Angle of View | 67.8?? ~ 2.4?? |
| Pan Speed | Configurable, from 0.1?? to 300??/s |
| Tilt Range | -15?? ~ 90?? (auto flip 180??) |
| Video Compression | H.264H / H.264B / MJPEG |
| Audio Interface | 1 input, 1 output |
| Alarm Interface | 2/1 |
| Power Supply | AC 24V/3A (??10%), DC 12V/5A (??10%) |
| Power Consumption | Max. 13W |
| Operating Temperature | -40??C ~ 70??C (-40??F ~ 158??F) |
| Protection | IP66, TVS 6000V Lightning Protection, Surge Protection |
