-5%
SD59432XA-HNR
Model: SD59432XA-HNR – Dahua 4MP PTZ
Details: Dahua 4MP 32x Starlight IR PTZ AI Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD59432XA-HNR Overview

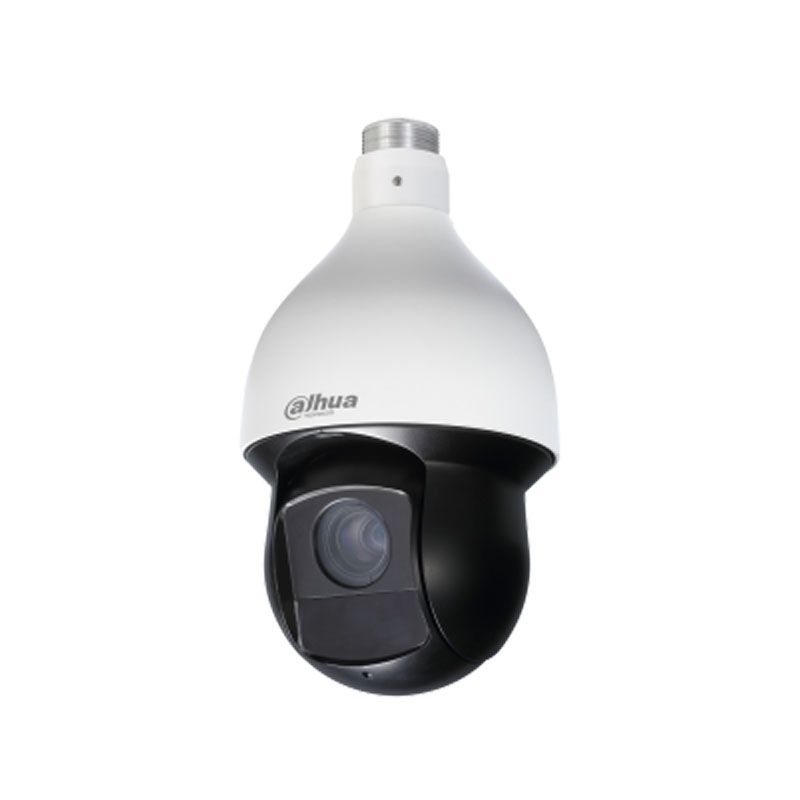

Quick Specs Figure 1 shows the appearance of SD59432XA-HNR.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ STARVIS? CMOS |
| Max. Resolution | 2560 (H) x 1440 (V) |
| Effective Pixels | 4MP |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/3–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005Lux@F1.3B/W: 0.0005Lux@F1.30Lux (IR light on) |
| IR Distance | 150 m (492.13 ft) |
| IR On/Off Control | Zoom Prio/Manual/SmartIR |
| IR LEDs Number | 4 |
| Focal Length | 4.9 mm–156 mm |
| Max. Aperture | F1.35–F4.4 |
| Field of View | H: 68.28°–2.24°; V: 38.9°–1.27°; D: 68.28°–1.44° |
| Optical Zoom | 32x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft ) |
| Iris Control | Auto/Manual |
| DORI Distance | Detect |
| 3034 m(9954.06 ft) | 1213 m(3979.66 ft) |
| Pan/Tilt Range | Pan: 0°–360°; Tilt: -10°–+90° |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern Number | 5 |
| Scanning Number | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Video metadata | Support human, motor vehicle and non-motor vehicle image capture |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection | Support |
| Auto Tracking | Support |
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly |
| General IVS | Object abandoned/missing |
| Compression | G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440)/3M (2048 × 1536)/1080P (1920 × 1080)/720P (1280 × 960)/D1 (704 × 576/704 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 720P (1–25/30 fps) |
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate |
| Bit Rate | H.265/H.264: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Electronic Image Stabilization (EIS) | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas |
| Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014 |
| Audio In | 1 |
| Audio Out | 1 |
| Alarm | 2/1 |
| Ethernet | RJ-45 (10/100Base-T) |
| Interoperability | ONVIF Profile S&G; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 19 (Total bandwidth 48M) |
| Edge Storage | FTP; Micro SD card (256G); P2P |
| Browser | IE7 and newer versionsChrome 42 and older versionsFirefox 52 and older versionsSafari |
| Management Software | Smart PlayerSmart PSSDSSEasy4ip |
| Smart Phone | IOS/Android |
| Power Supply | AC24V/3A±25%PoE+ (802.3at) |
| Power Consumption | 11W24W (IR on) |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | ≤95%RH |
| Ingress Protection | IP66; TVS 6000V lightning protection; surge protection |
| Dimensions | Φ186 mm x 309 mm (7.32″ × 12.17″) |
| Net Weight | 3.9 kg (8.60 lb) |
| Gross Weight | 7.01 kg (15.45 lb) |
| Casing | Metal |
