-5%
SD5A445XA-HNR
Model: SD5A445XA-HNR – Dahua 4MP PTZ
Details: 4MP 45x Starlight IR PTZ AI Network Camera;
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD5A445XA-HNR Overview

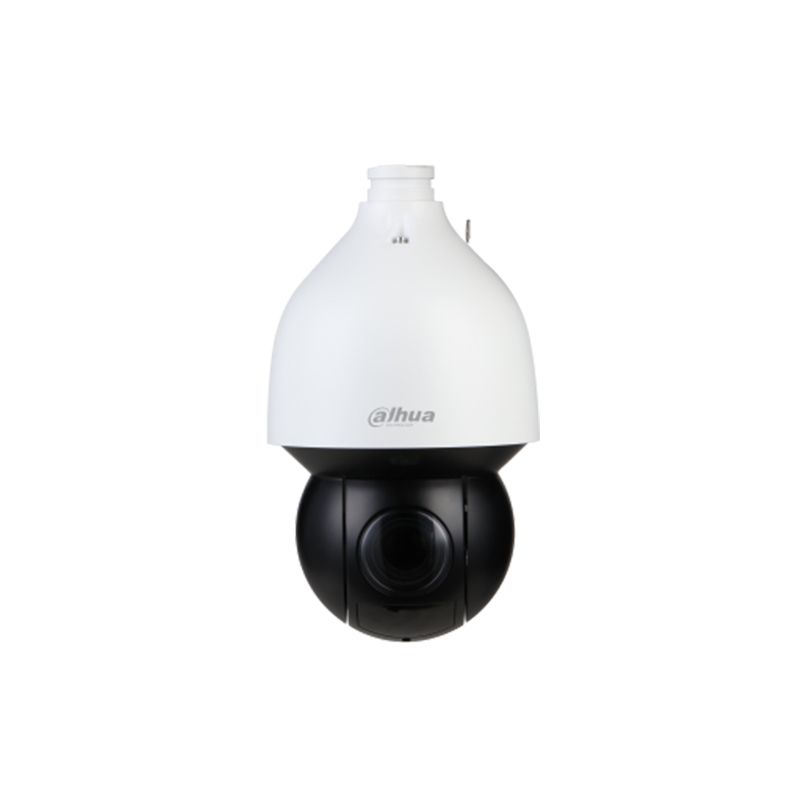

Quick Specs Figure 1 shows the appearance of SD5A445XA-HNR.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ STARVISâ„¢ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/3–1/30,000s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux@F1.6B/W: 0.0005 Lux@F1.60Lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR |
| Illuminator Number | 4 |
| Focal Length | 3.95 mm–177.7 mm |
| Max. Aperture | F1.6–F4.95 |
| Field of View | H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° |
| Optical Zoom | 45x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.01 m–3 m |
| Iris Control | Auto/Manual |
| DORI Distance | Detect |
| 3176 m(10419.95 ft) | 1270 m (4166.67 ft) |
| Pan/Tilt Range | Pan: 0°–360°; Tilt: -15°–+90° |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
| Event Trigger | Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
| IVS | Object Abandoned/Missing |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD Plus | Support |
| Auto Tracking | Support |
| Face Detection | Support |
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| Compression | G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 |
| Streaming Capability | 3 Streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M(1–25/30 fps), 1080p/1.3M/720p (1–25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 1080p (1-20/11 fps),1.3M/720p (1–25/30 fps), D1/ CIF (1–25/30 fps) |
| Bit Rate Control | Variable/Constant |
| Bit Rate | H.264: 32 Kbps–8192 KbpsH.265: 32 Kbps–8192 Kbps |
| Day/Night | Support |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas |
| Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA 22.2,No.60950-1 |
| Audio I/O | 1 (Line in; bare wire)/1 (Line out; bare wire) |
| Alarm I/O | 2/1 |
| Ethernet | 1 RJ-45 Port 10/100Base-T |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (Total bandwidth 48M) |
| Storage | FTP; Micro SD card (256G); P2P |
| Browser | IE7 and newer versionsChrome 42 and older versionsFirefox 52 and older versionsSafari |
| Management Software | Smart PlayerSmart PSSDSSEasy4ip |
| Mobile Phone | IOS/Android/Windows Phone |
| Power Supply | DC 24 V/2.5 A ± 25%PoE+(802.3at) |
| Power Consumption | 11W20W (IR light on) |
| Operating Conditions | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤95%RH |
| Protection | IP67; IK10; TVS 6000V lightning protection;surge protection |
| Dimensions | Φ190 mm × 332 mm (7.48″ × 13.07″) |
