-5%
SD6AL445XA-HNR-IR
Model: SD6AL445XA-HNR-IR – Dahua 4MP PTZ
Details: Dahua 4MP 45x Starlight IR PTZ AI Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SD6AL445XA-HNR-IR Overview

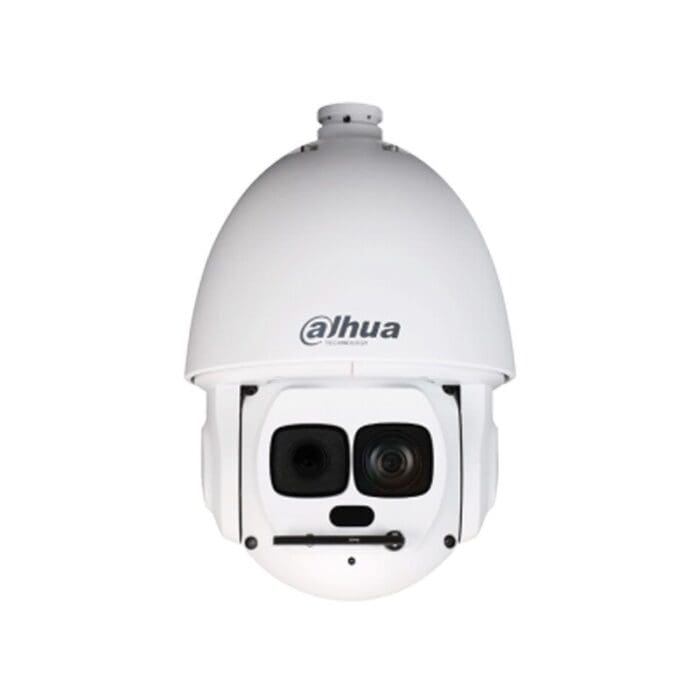

Quick Specs Figure 1 shows the appearance of SD6AL445XA-HNR-IR.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 4MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1 s –1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005Lux@F1.6B/W: 0.0005Lux@F1.60Lux (IR light on) |
| IR Distance | 300 m (984.25 ft) |
| IR On/Off Control | Zoom Prio/Manual/SmartIR/Off |
| IR LEDs Number | 7 |
| Wiper | Support |
| Focal Length | 3.95 mm–177.7 mm (0.15″–7.00″) |
| Max. Aperture | F1.6–F4.9 |
| Field of View | H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° |
| Optical Zoom | 45x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.01 m–3 m (0.03 ft–9.84 ft) |
| Iris Control | Auto |
| DORI Distance | Detect |
| 3554 m (11660.10 ft) | 1421.6 m(4664.04 ft) |
| Pan/Tilt Range | Pan: 0°–360° endlessTilt: –20°–+90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–200°/sTilt: 0.1° –120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scanning | 5 |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Video Metadata | Support detection of human bodies, motor vehicles and non-motor vehicles; support optimization; support taking snapshots; support uploading high-quality motor vehicle snapshots. |
| Perimeter Protection | Tripwire, intrusion, abandoned object and missing object. Support human and vehicle alarm classification, and linkage tracking. |
| Face Detection | Support face detection; support optimization; support taking snapshots; support uploading high-quality face snapshots; support attributes extraction: 6 attributes and 8 expressions. |
| SMD | Support |
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M (1–25/30 fps), 1080P/1.3M/720P (1–25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 1080P (1–25/30 fps), 720P (1–25/30 fps) |
| Bit Rate Control | Variable/Constant |
| Bit Rate | Main stream with default resolution:H.264: 3 Kbps–20480 KbpsH.265: 3 Kbps– 20480 Kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Digital |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Ethernet | RJ-45 (10/100Base-T) |
| Interoperability | ONVIF (Profile S/Profile G); CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 19 |
| Edge Storage | FTP; Micro SD card (256G); P2P |
| Browser | IE7 and later versionsChrome 42 and earlier versionsFirefox 52 and earlier versionsSafari |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Phone | IOS; Android |
| Certifications | CE: EN62368-1; EN55032; EN61000-3-2; EN61000-3-3; EN55024; EN55035; EN50130-4FCC: 47 CFR FCC Part15, SubpartB, ClassA; ANSI C63.4: 2014 |
| RS-485 | 1 (Baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm I/O | 7/2 |
| Power Supply | DC36V/2.23A; HI-PoE |
| Power Consumption | Basic: 20WMax.: 36W (IR light and PTZ on at minimum voltage) |
| Operating Temperature | –40°C ~ 70°C (-40°F to 158°F) |
| Operating Humidity | ≤95% |
| Protection | IP67; TVS 8000V lightning proof; Surge protection |
| Casing | Metal |
| Dimensions | 382 mm × Φ240 mm (15.04″ x Φ9.45″) |
| Net Weight | 6.5 kg (14.33 lb) |
| Gross Weight | 8.9 kg (19.62 lb) |
