SD6CE445XA-HNR

Original price was: $864.00.Current price is: $820.80.

Model: SD6CE445XA-HNR – Dahua 4MP PTZ
Details: Dahua 4MP 45x Starlight IR PTZ AI Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: SD6CE445XA-HNR Categories: , ,
Description

SD6CE445XA-HNR Overview

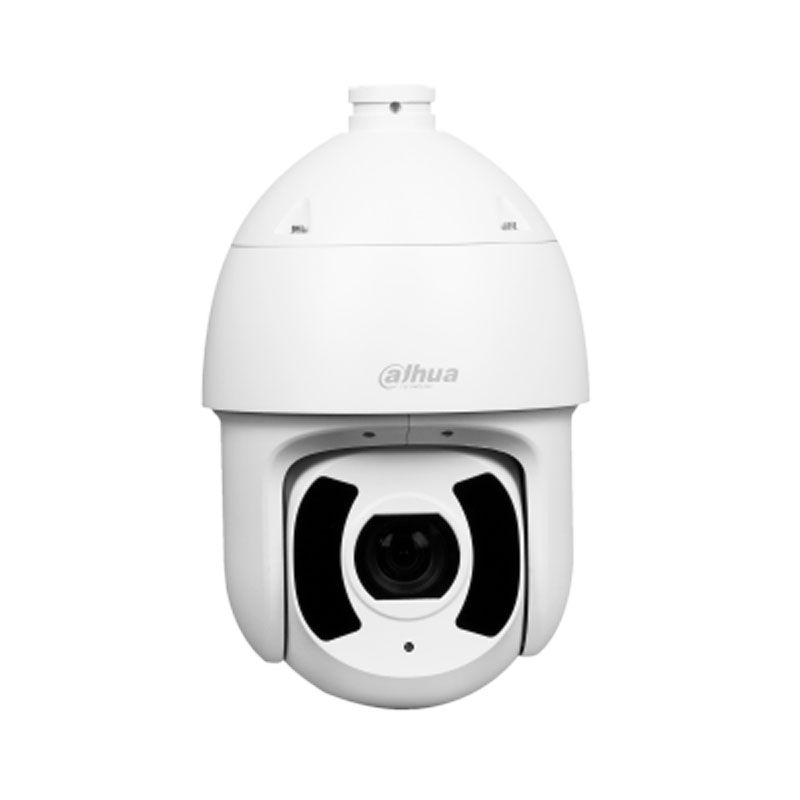

Quick Specs Figure 1 shows the appearance of SD6CE445XA-HNR.

Table 1 shows the Quick Specs.

Image Sensor 1/2.8” STARVIS? CMOS
Effective Pixels 2560(H) x 1440(V), 4 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
IR Distance Distance up to 250m (820ft)
IR On/Off Control Auto/Manual
IR LEDs 6
Focal Length 3.95mm~177.75mm
Max. Aperture F1.6~ F4.95
Angle of View H: 70.3° ~ 1.8°; V: 37° ~ 1°; D: 69.3° ~ 2°
Optical Zoom 45x
Focus Control Auto/Manual
Iris Control Auto/Manual
Close Focus Distance 10mm~ 3000mm
Detect Observe
3176m(10420ft) 1271m(4170ft)
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~260° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Patern, 8 Tour(up to 32 preset per tour), AutoPan, 5 Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP,SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Perimeter Protection Tripwire, Intrusion.Support alarm triggering by target types(humanand vehicle)Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
Auto Tracking Support
Video Structuralization Support human, motor vehicle and non-motor vehicle image capture
Event Trigger Motion detection, Video tampering , Scenechanging, Network disconnection, IP addressconfl ict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Compression G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Streaming Capability 3 Streams
Resolution 4M(2560×1440)/3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 3Kbps ~ 20480Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest Support
Electronic Image Stabilization (EIS) Support
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Ethernet RJ-45 (10Base-T/100Base-TX)
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014
RS485 1
Audio I/O 1/1
Alarm I/O 7/2
Power Supply AC24V/3A(±25%), PoE+(802.3at)
Power Consumption 13W, 26W(IR On, Heater On)
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Casing Metal
Dimensions φ209×337.4mm
Net Weight 5.9kg(13lb)
Gross Weight 9.6kg(21.16lb)
