TPC-ACPT8420A-B
Model: TPC-ACPT8420A-B – Dahua Thermal Cameras
Details: Dahua Thermal Network Anti-corrosion Hybrid Pan & Tilt Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-ACPT8420A-B Overview

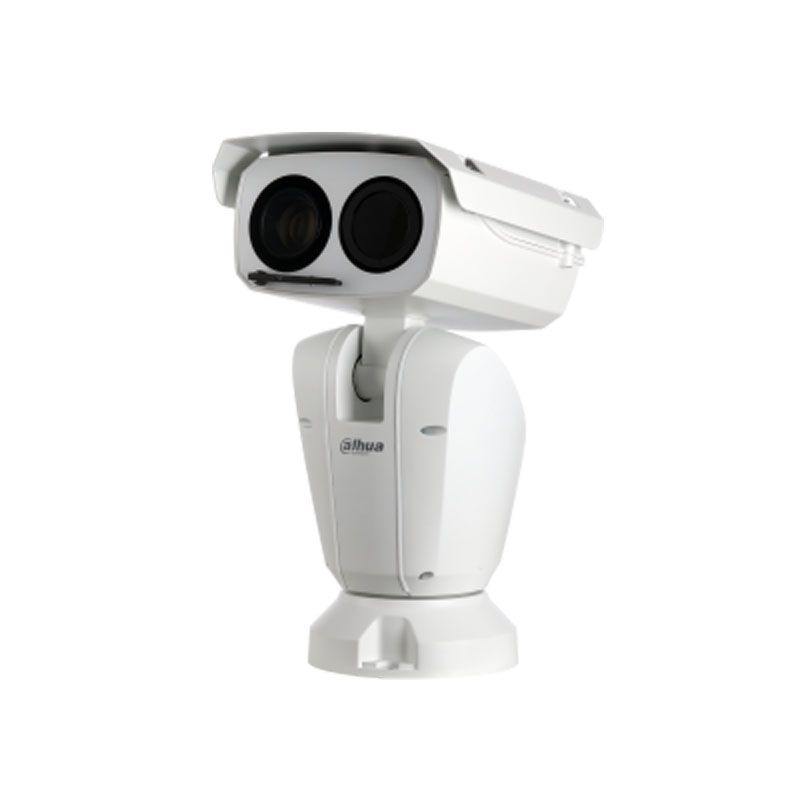

Quick Specs Figure 1 shows the appearance of TPC-ACPT8420A-B.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-ACPT8420A-B |
| Product Type | Thermal Network Anti-corrosion Hybrid Pan & Tilt Camera |
| Imagery Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 640 ° 512 |
| Lens Type | Thermal: 25 mm; Visible: 4.5-148.5 mm |
| Frame Rate | 50 Hz |
| Horizontal Field of View | Thermal: 24.5°; Visible: 2.3° to 69° |
| Pan Range | 360° Continuous |
| Tilt Range | -90° to +90° |
| Pan Speed | 0.1°/s to 160°/s |
| Tilt Speed | 0.1°/s to 60°/s |
| Minimum Object Size Detection | 128 x 128 pixels |
| Temperature Measurement Range | -20°C to +400°C |
| Ingress Protection | IP68 |
| Material | Anti-corrosive |
| Networking Interface | RJ-45 (10/100 Base-T) |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24V AC, Hi-PoE |
| Power Consumption | Max. 45W |
| Video Compression | H.265/H.264/MJPEG |
| On-board Storage | Micro SD Card Slot (up to 256 GB) |
