TPC-ACPT8420C-B
Model: TPC-ACPT8420C-B – Dahua Thermal Cameras
Details: Dahua Thermal Network Anti-corrosion Tribrid PTZ Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-ACPT8420C-B Overview

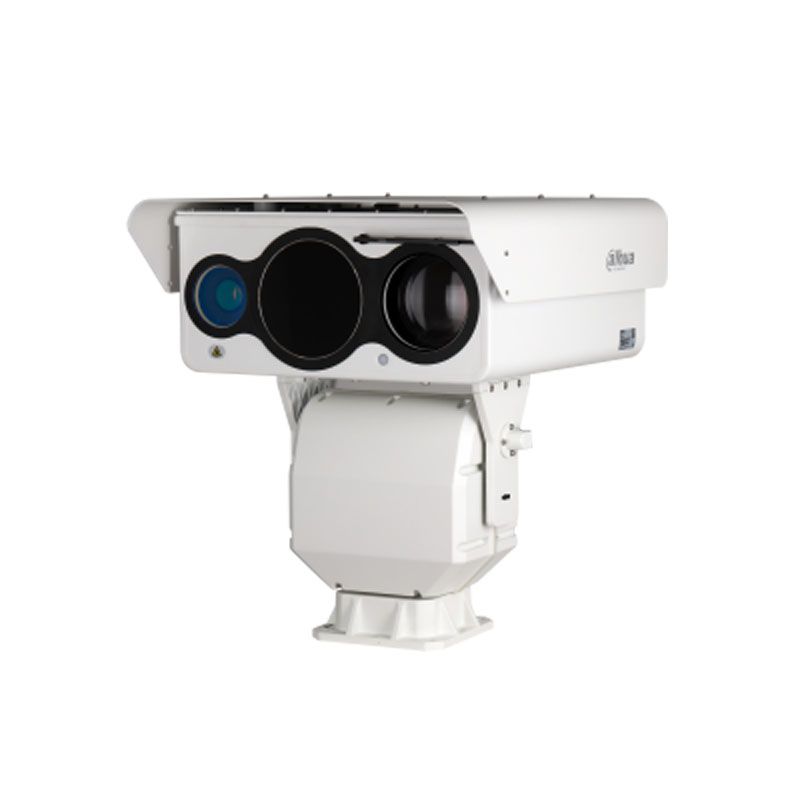

Quick Specs Figure 1 shows the appearance of TPC-ACPT8420C-B.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-ACPT8420C-B |
| Resolution | 640 x 512 (Thermal), 2 Megapixels (Optical) |
| Sensor Type | Uncooled VOx Microbolometer (Thermal), 1/2.8″ CMOS (Optical) |
| Lens | 40mm (Thermal), 4.8 – 120mm (Optical) |
| Zoom | 25x Optical Zoom |
| Frame Rate | 50/60fps @ 1080p (Optical), °30fps (Thermal) |
| Temperature Measurement Range | -20°C to +550°C (-4°F to +1022°F) |
| Temperature Measurement Accuracy | °2°C or °2% |
| Compression | H.265, H.264, MJPEG |
| IR Distance | Up to 200 meters |
| PTZ | Pan: 0° ~ 360°, Tilt: -15° ~ +90° |
| Ingress Protection | IP66 |
| Power Supply | AC 24V/3A (°10%), PoE+ (802.3at) |
| Power Consumption | Max. 50W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Humidity | Less than 95% RH |
| Dimensions | °209.5mm ° 354.6mm |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, RTSP, RTP, TCP/IP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, UPnP, SNMP, IGMP, 802.1X, QoS |
| Smart Functions | Perimeter protection, Face detection, Heat map |
