TPC-PT8420M-B
Model: TPC-PT8420M-B – Dahua Thermal Cameras
Details: Dahua Thermal Network Mobile Hybrid Pan & Tilt Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-PT8420M-B Overview

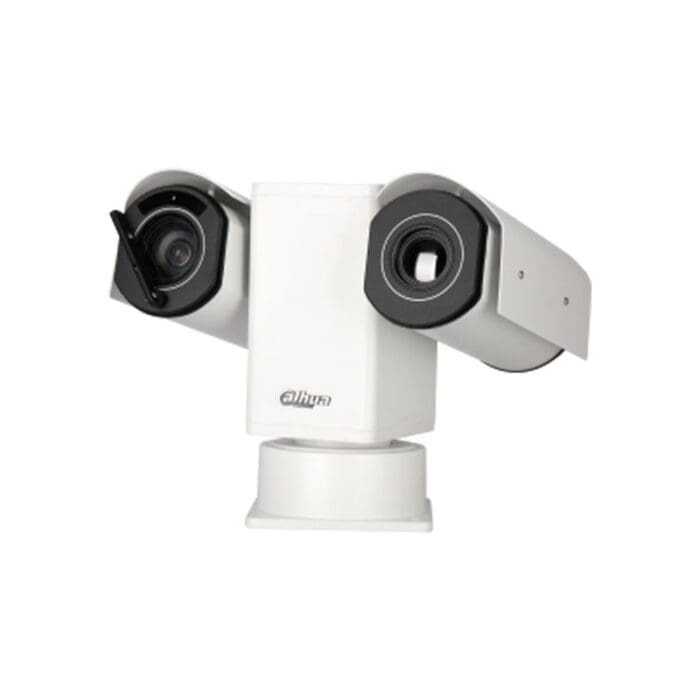

Quick Specs Figure 1 shows the appearance of TPC-PT8420M-B.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-PT8420M-B |
| Product Type | Thermal Network Mobile Hybrid Pan & Tilt Camera |
| Resolution | 640 x 512 |
| Lens | Uncooled VOx Focal Plane Detector |
| Field of View | 25° x 19° |
| Pan Range | 0° to 360° endless |
| Tilt Range | -90° to +90° |
| Zoom | Optical 32x |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Network Interface | RJ-45 (10/100Base-T) |
| Storage | MicroSD (up to 256GB) |
| Power Supply | AC 24V, DC 12V |
| Power Consumption | Max 20W |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP66 |
| Dimensions | 444 ° 291 ° 150 mm |
| Weight | 3.1 kg (excluding specified as required) |
