TPC-PT8420M-TB
Model: TPC-PT8420M-TB – Dahua Thermal Cameras
Details: Dahua Thermal Network Mobile Hybrid Pan & Tilt Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
TPC-PT8420M-TB Overview

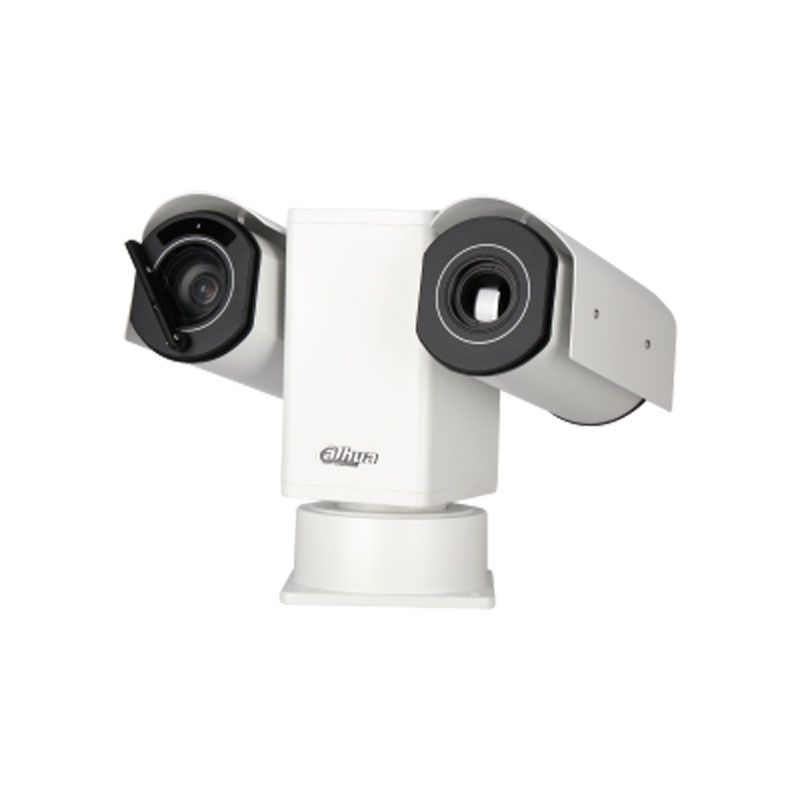

Quick Specs Figure 1 shows the appearance of TPC-PT8420M-TB.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | TPC-PT8420M-TB |
| Product Type | Thermal Network Mobile Hybrid Pan & Tilt Camera |
| Thermal Resolution | 400 x 300 |
| Image Sensor | 1/2.8° 2 Megapixel Progressive Scan CMOS |
| Lens Type | 6 mm to 205 mm Motorized Lens |
| Zoom | 34x Optical Zoom |
| Pan Range | 0° to 360° endless |
| Tilt Range | -90° to +40° |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711a, G.711Mu, AAC, G.726 |
| Frame Rate | 25/30 fps at 1080p |
| Power Supply | DC 12V |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP66 |
| IR Distance | Up to 100 meters |
| Network Protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, ONVIF |
| Micro SD Memory | 256 GB |
| Alarm Input/Output | 7/2 |
| Audio Input/Output | 1/1 |
| Dimensions | ?239.6 mm ° 336.6 mm |
