VCN3000
Model: Huawei eSpace VCN3000 Video Cloud node
Details: Huawei eSpace VCN3000 Video Cloud node
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
VCN3000 Overview

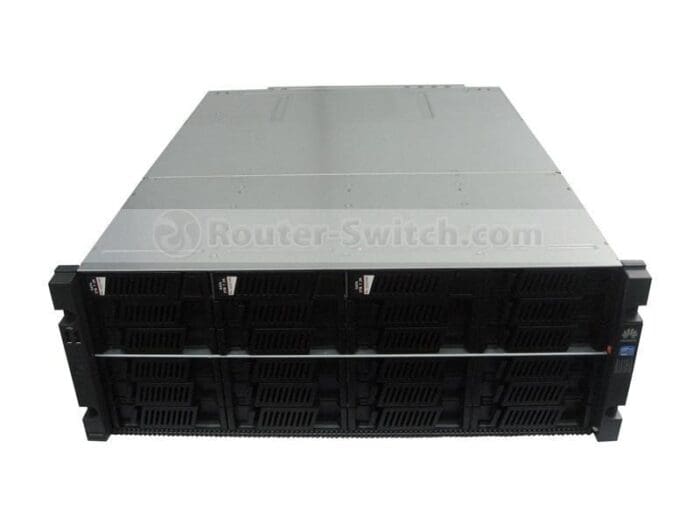

Quick Specs Figure 1 shows the appearance of VCN3000.
Table 1 shows the Quick Specs.
| Enclosure | 4U 38 HDD(2 system disks, 36 video data disks) |
| CPU | 2×64bit quad-core processor, 2.2GHz |
| Memory | 16GB |
| InterfacesHDD type | 2×10/100/1000M Ethernet PortsSystem Disk: 2×2.5’SAS, 300GData Disk: 36×3.5’SATA, 2 or 3TB |
| SAS Channel | 6Gbps |
| HDD plug and play | Support |
| RAID Mode | RAID00,1,5,6, with SafeVideo |
| Hot-spare DiskOther Interfaces | Support dynamic hot spare disk1×10/100M MGMT, 4×USB2.0, 1× VGA, 1×RS232 |
| WeightOperating Temperature | Full configuration net weight ≤70kg5°C ~ 30°C |
| Operating humidity | 20% ~ 80% |
| Power ModulePower Consumption | Dual power supply, 1+1, hot plug and play.AC 100 ~ 127V/200V ~ 240V(50/60Hz)< 810W |
| Product Appearance | 175mm×446mm×582mm |
