VTH5341G-W
Model: VTH5341G-W – Dahua Video Intercoms Devices
Details: Dahua Android 10-inch digital indoor monitor
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
VTH5341G-W Overview

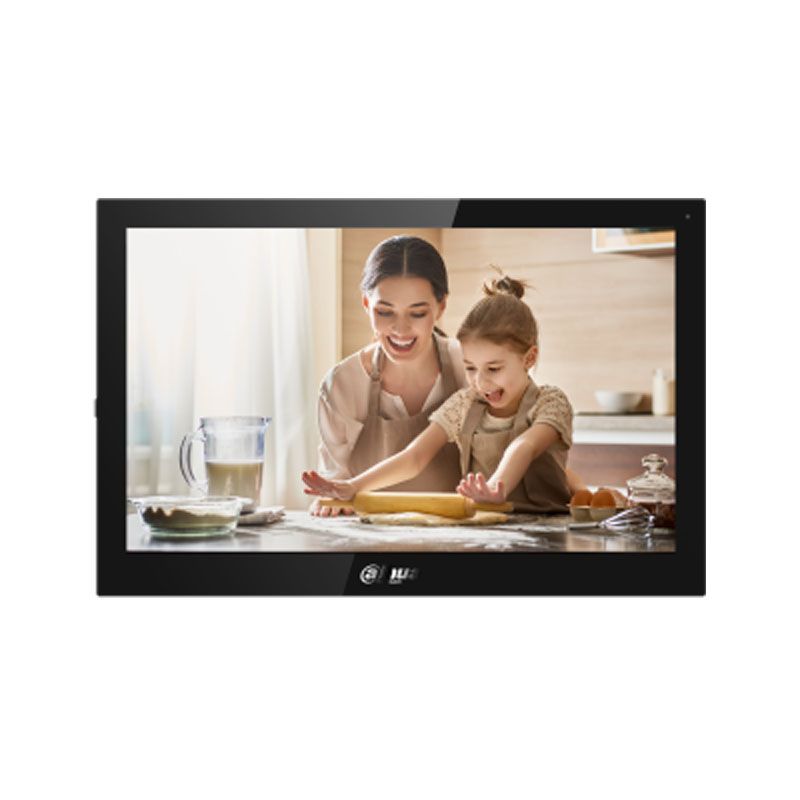

Quick Specs Figure 1 shows the appearance of VTH5341G-W.
Table 1 shows the Quick Specs.
| Main Processor | Embedded processor |
| Operating System | Android 8.1 |
| Network Protocol | IPv4, TCP, SIP, UDP, RTSP |
| Screen Type | Capacitive screen |
| Display Screen | 10 inch TFT LCD |
| Resolution | 1024Ă—600 |
| Video Compression | H.264 |
| Audio Compression | PCM |
| Audio Input | 1 omnidirectional microphone |
| Audio Output | Built-in 1.5W speaker |
| Audio Mode | Two-way voice call |
| Audio Enhancement | Echo suppression/DNR |
| Audio Bit Rate | 16KHz, 16Bit |
| Information Release | Text announcements released by the management center can be viewed |
| Communication Mode | Full digital |
| Elevator Control | You can control the elevator through the indoor monitor |
| Leave Videos or Text Messages | Yes (SD card is needed) |
| DND Mode | Do not disturb period can be set. |
| Extension Number | Villa: 4Apartment: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4GHz |
| Wireless Security-Encryption | 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Storage | Micro SD storage, the maximum space is 256GB |
| RS-485 | 1 |
| Alarm Input | 8 |
| Alarm Output | 1 |
| Power Output | 1 12V/100mA |
| Door Bell | Yes, use alarm input port |
| Network Port | 1 10M/100M Ethernet |
| SOS | Yes |
| Housing Material | PC+ABS |
| Color | Black |
| Power Supply | 12V DC 1AStandard POE |
| Installation | Surface mount |
| Certifications | CEFCC |
| Accessory | Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided |
| Product Dimensions | 260 mmĂ—170 mmĂ—15 mm (10.24″Ă—6.69″Ă—0.59″) (ports are not counted) 260 mmĂ—170 mmĂ—25.4 mm (convex) (10.24″Ă—6.69″Ă—1″) (ports are counted) |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH–95%RH (Non-condensing) |
| Operating Altitude | Less than 3,000 meters (9842.52 ft) |
| Power Consumption | ≤1.5W (standby), ≤7W (working) |
| Net Weight | 770g (1.70lb) |
| Gross Weight | 1.1kg (2.43lb) |
