VTO2202F-P
Model: VTO2202F-P – Dahua Video Intercoms Devices
Details: Dahua IP Villa Door Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
VTO2202F-P Overview

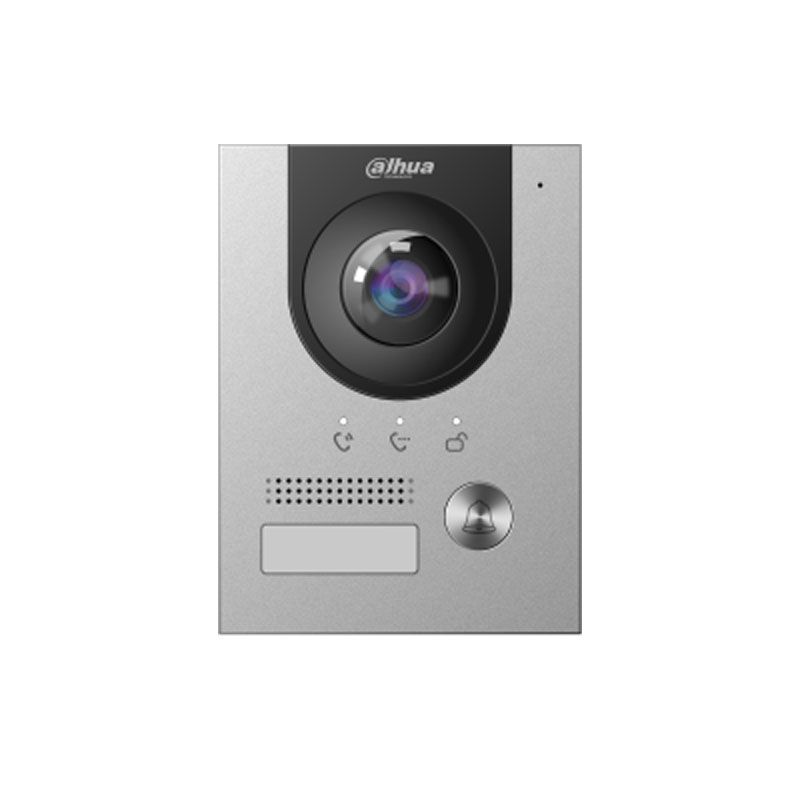

Quick Specs Figure 1 shows the appearance of VTO2202F-P.
Table 1 shows the Quick Specs.
| Host Processor | Embeded processor |
| Camera | 1/2.8″ 2MP CMOS high definition low illumination colorful |
| Angle of view | D:180° H:160° V:82° |
| Focal length | 1.95 mm |
| WDR | Support |
| Noise reduction | Noise suppression and echo cancellation |
| Video encoding | H.264 |
| Frame rate | PAL:25 fps NTSC:30 fps |
| Audio encoding | G.711 U |
| Video bit rate | 256K to 2M |
| Light compensation | IR Supplement |
| RS-485 Port | 1 |
| Alarm Output | Support |
| Lock Control | 1 set |
| Door Status Detection | 1 set |
| Eoc | 1 set |
| Exit Button | 1 |
| Tamper Switch | 1 set |
| Network Interface | 1 |
| Power Output | 12V/100mA |
| Tamper Alarm | Support |
| Door Sensor Timeout Alarm | Support |
| Alarm Iutput | Support |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Status Indicator | calling&communication&unlocked |
| Communication Methods | Digital communication |
| Unlock Mode | Remote unlocking |
| Auto Snapshot | Support |
| Leave Videos or Text Messages | Support |
| Storage | Extended 64 G TF Card |
| WEB Configuration | Support |
| Real-Time Monitor | Support |
| Ingress Protection | IP65 (Apply silica gel to gaps between the device andthe wall. Liquid sodium silicate is recommended. Fordetails, see the quick start guide.) |
| Network Update | Online update |
| Housing material | Alumimum |
| Power supply mode | 2-Wire Inteface or PoE |
| Rated Power | 12V DC |
| Rated Current | 1A |
| Installation method | Supports surface mounted and flush mounted |
| Dimensions | 130 mm×96 mm×28.5 mm (5.1″×3.78″×1.1″) |
| Working Temperature | -30°C to +60°C (-22°F to +140°F) |
| Working Humidity | 10%–90% |
| Atmospheric Pressure | 86kPa–106kPa |
| Power Consumption | ≤12W |
| Total Weight | 0.35kg/0.77lb |
| Environmental Requirement | Outdoor |
