IPC-HDBW2231E-S-S2
Model: IPC-HDBW2231E-S-S2 – Dahua 2MP IP Cameras
Details: Dahua 2MP WDR IR Mini Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HDBW2231E-S-S2 Overview

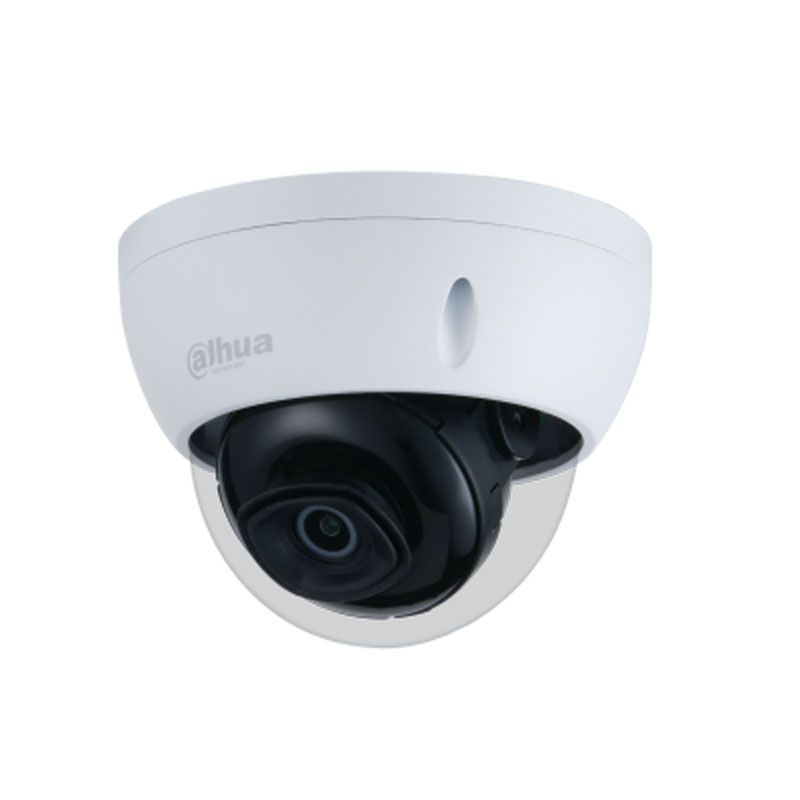

Quick Specs Figure 1 shows the appearance of IPC-HDBW2231E-S-S2.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8”2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) ×1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.002 Lux @F1.6 |
| IR Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 3 |
| Pan/Tilt/Rotation Range | Horizonal: 0°–355°Vertical: 0°–65°Rotation: 0°–355° |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm:Horizontal:106°Vertical: 56°Diagonal: 126°3.6 mm:Horizontal:87°Vertical: 46°Diagonal: 104° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft)3.6 mm: 1.2 m (3.9 ft) |
| DORI Distance | Lens |
| 2.8 mm | 38.6 m(126.6 ft) |
| 3.6 mm | 55.2 m(181.1 ft) |
| General IVS Analytics | Intrusion; tripwire |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream:1920 × 1080 (1 fps-25/30 fps)Sub stream:704 × 576 (1 fps-25fps)704 × 480 (1 fps-30fps) |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–6144 KbpsH.265: 12 Kbps–6144 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
| User/Host | 20 |
| Edge Storage | Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IEChromeFirefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN60950-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 5.4W |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67, IK10 |
| Casing | Metal |
| Dimensions | 81 mm × Φ109.9 mm (3.2″ × Φ4.3″) |
| Net Weight | 0.35 kg (0.77lb) |
| Gross Weight | 0.48 kg (1.06lb) |
