IEM-3000-4SM= Original price was: $710.00.Current price is: $674.50.
Back to products
JG312A $0.00

JG311A

$0.00

Model: JG311A – HP 5500 HI Switch
Details: HP HI 5500-24G-4SFP w/2 Intf Slts Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: JG311A Categories: , ,
Description

JG311A Overview

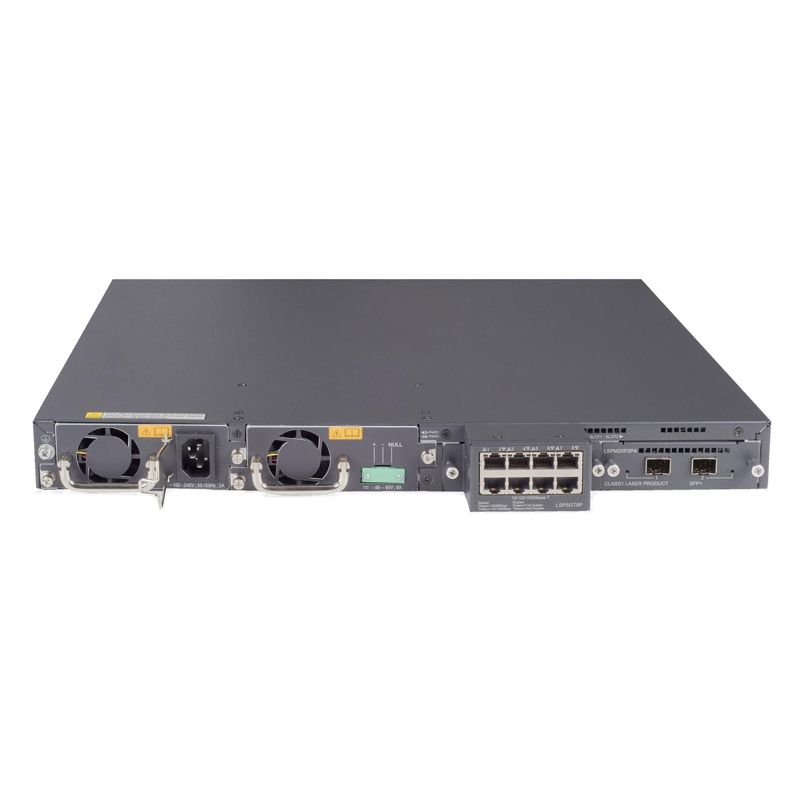

Quick Specs Figure 1 shows the appearance of JG311A.

Table 1 shows the Quick Specs.

Type HP 5500-24G-4SFP HI Switch with 2 interface Slots
Dimensions (H x W x D) 4.37 x 44 x 36 cm (1.72 x 17.32 x 14.17 in) (1U height)
Weight 7.5 kg (16.53 lb)
Operating temperature 0° to 50°C (32° to 122°F)
Operating relative humidity 5% to 95%Non-condensing
Non-operating/storage temperature -40° to +70°C (-40° to +158°F)
Non-operating/storage relative humidity 5% to 95%Non-condensing
Acoustic Low-speed fan: 48.3 dBHigh-speed fan: 54.0 dB
Frequency 50/60 Hz
Maximum heat dissipation1 481 BTU/hr (507.46 kJ/hr)
Maximum power rating 141 W
PoE power2 –
Voltage 100 – 240 V ac, rated -48 to -60 V dc, rated(depending on power supply chosen)
Ports 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)Media Type: Auto-MDIXDuplex: 10BASE-T/100BASE-TX: half or full1000BASE-T: full only4 fixed Gigabit Ethernet SFP ports2 SFP+ 10GbE ports2 port expansion module slotsSupports a maximum of 38 autosensing 100/1000 ports, with optional module
Additional ports and slots 1 RJ-45 serial console port1 RJ-45 out-of-band management port
Power supplies 2 power supply slots1 minimum power supply required (ordered separately)
Memory and processor 1 GB SDRAMPacket buffer size: 3 MB512 MB flash
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance 1000 Mb Latency: < 5 µs10 Gb/s Latency: < 3 µsThroughput: up to 130.9 mp/sRouting/Switching capacity: 176 Gb/sRouting table size: 12000 entries (IPv4), 6000 entries (IPv6)MAC address table size: 32000 entries
Safety UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1FDA 21 CFR Subchapter JROHS ComplianceAS/NZS 60950-1GB 4943
Emissions EN 55022 Class ACISPR 22 Class AEN 55024ICES-003 Class ACISPR 24AS/NZS CISPR 22 Class AEN 61000-3-2EN 61000-3-3GB9254VCCI-3 CLASS AVCCI-4 CLASS AETSI EN 300 386FCC Part 15 (CFR 47) CLASS AYD/T993
BGP RFC 1657 Definitions of Managed Objects for BGPv4RFC 1771 BGPv4RFC 2385 BGP Session Protection via TCP MD5RFC 2858 BGP-4 Multi-Protocol Extensions
Device management RFC 1157 SNMPv1/v2cRFC 1305 NTPv3RFC 1901 (Community based SNMPv2)RFC 2452 MIB for TCP6RFC 2454 MIB for UDP6RFC 2573 (SNMPv3 Applications)RFC 2576 (Coexistence between SNMP V1, V2, V3)RFC 2819 (RMON groups Alarm, Event, History and Statistics only)RFC 3410 (Management Framework)RFC 3416 (SNMP Protocol Operations v2)RFC 3417 (SNMP Transport Mappings)HTML and telnet managementMultiple Configuration FilesSNMP v3 and RMON RFC supportSSHv1/SSHv2 Secure Shell
General protocols IEEE 802.1ad Q-in-QIEEE 802.1D MAC BridgesIEEE 802.1p PriorityIEEE 802.1Q (GVRP)IEEE 802.1w Rapid Reconfiguration of Spanning TreeIEEE 802.3ab 1000BASE-TIEEE 802.3ad Link Aggregation (LAG)IEEE 802.3ae 10-Gigabit EthernetIEEE 802.3af Power over EthernetIEEE 802.3i 10BASE-TIEEE 802.3u 100BASE-XIEEE 802.3x Flow ControlIEEE 802.3z 1000BASE-XRFC 768 UDPRFC 791 IPRFC 792 ICMPRFC 793 TCPRFC 854 TELNETRFC 925 Multi-LAN Address ResolutionRFC 950 Internet Standard Subnetting ProcedureRFC 951 BOOTPRFC 1058 RIPv1RFC 1122 Host RequirementsRFC 1141 Incremental updating of the Internet checksumRFC 1213 Management Information Base for Network Management of TCP/IP-based internetsRFC 1256 ICMP Router Discovery Protocol (IRDP)RFC 1305 NTPv3RFC 1350 TFTP Protocol (revision 2)RFC 1519 CIDRRFC 1542 BOOTP ExtensionsRFC 1723 RIP v2RFC 1812 IPv4 RoutingRFC 1887 An Architecture for IPv6 Unicast Address AllocationRFC 2131 DHCPRFC 2236 IGMP SnoopingRFC 2338 VRRPRFC 2375 IPv6 Multicast Address AssignmentsRFC 2616 Hypertext Transfer Protocol — HTTP/1.1RFC 2644 Directed Broadcast ControlRFC 2865 Remote Authentication Dial In User Service (RADIUS)RFC 2866 RADIUS AccountingRFC 3246 Expedited Forwarding PHBRFC 3410 Applicability Statements for SNMPRFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6)RFC 3493 Basic Socket Interface Extensions for IPv6RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6RFC 3587 IPv6 Global Unicast Address FormatRFC 3596 DNS Extensions to Support IP Version 6RFC 3623 Graceful OSPF RestartRFC 3704 Unicast Reverse Path Forwarding (URPF)RFC 3768 Virtual Router Redundancy Protocol (VRRP)RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6RFC 4113 Management Information Base for the User Datagram Protocol (UDP)RFC 4213 Basic IPv6 Transition MechanismsRFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) SpecificationRFC 4762 Virtual Private LAN Service (VPLS) Using LabelDistribution Protocol (LDP) Signaling802.1r – GARP Proprietary Attribute Registration Protocol (GPRP)
IP multicast RFC 2236 IGMPv2RFC 2710 Multicast Listener Discovery (MLD) for IPv6RFC 2858 Multiprotocol Extensions for BGP-4RFC 3376 IGMPv3RFC 3569 An Overview of Source-Specific Multicast (SSM)RFC 3618 Multicast Source Discovery Protocol (MSDP)RFC 3973 PIM Dense ModeRFC 4601 PIM Sparse Mode
IPv6 RFC 1881 IPv6 Address Allocation ManagementRFC 1887 IPv6 Unicast Address Allocation ArchitectureRFC 1981 IPv6 Path MTU DiscoveryRFC 2080 RIPng for IPv6RFC 2373 IPv6 Addressing ArchitectureRFC 2375 IPv6 Multicast Address AssignmentsRFC 2460 IPv6 SpecificationRFC 2461 IPv6 Neighbor DiscoveryRFC 2462 IPv6 Stateless Address Auto-configurationRFC 2463 ICMPv6RFC 2464 Transmission of IPv6 over Ethernet NetworksRFC 2475 IPv6 DiffServ ArchitectureRFC 2710 Multicast Listener Discovery (MLD) for IPv6RFC 2740 OSPFv3 for IPv6RFC 2893 Transition Mechanisms for IPv6 Hosts and RoutersRFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only)RFC 3162 RADIUS and IPv6RFC 3306 Unicast-Prefix-based IPv6 Multicast AddressesRFC 3307 IPv6 Multicast Address AllocationRFC 3315 DHCPv6 (client and relay)RFC 3484 Default Address Selection for IPv6RFC 3493 Basic Socket Interface Extensions for IPv6RFC 3513 IPv6 Addressing ArchitectureRFC 3542 Advanced Sockets API for IPv6RFC 3587 IPv6 Global Unicast Address FormatRFC 3596 DNS Extension for IPv6RFC 3810 MLDv2 for IPv6RFC 4113 MIB for UDPRFC 4443 ICMPv6
MIBs RFC 1212 Concise MIB DefinitionsRFC 1213 MIB IIRFC 1657 BGP-4 MIBRFC 1724 RIPv2 MIBRFC 1757 Remote Network Monitoring MIBRFC 1850 OSPFv2 MIBRFC 2012 SNMPv2 MIB for TCPRFC 2013 SNMPv2 MIB for UDPRFC 2233 Interface MIBRFC 2452 IPV6-TCP-MIBRFC 2454 IPV6-UDP-MIBRFC 2465 IPv6 MIBRFC 2466 ICMPv6 MIBRFC 2571 SNMP Framework MIBRFC 2572 SNMP-MPD MIBRFC 2573 SNMP-Target MIBRFC 2574 SNMP USM MIBRFC 2618 RADIUS Authentication Client MIBRFC 2620 RADIUS Accounting Client MIBRFC 2787 VRRP MIBRFC 2819 RMON MIBRFC 2925 Ping MIBRFC 3414 SNMP-User based-SM MIBRFC 3415 SNMP-View based-ACM MIBRFC 4113 UDP MIB
Network management IEEE 802.1AB Link Layer Discovery Protocol (LLDP)IEEE 802.1D (STP)RFC 1157 SNMPv1RFC 1212 Concise MIB definitionsRFC 1215 Convention for defining traps for use with the SNMPRFC 1757 RMON 4 groups: Stats, History, Alarms and EventsRFC 1901 SNMPv2 IntroductionRFC 1918 Private Internet Address AllocationRFC 2373 Remote Network Monitoring Management Information Base for High Capacity NetworksRFC 2571 An Architecture for Describing SNMP Management FrameworksRFC 2572 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)RFC 2573 SNMP ApplicationsRFC 2574 SNMPv3 User-based Security Model (USM)RFC 2575 SNMPv3 View-based Access Control Model (VACM)RFC 2576 Coexistence between SNMP versionsRFC 2578 SMIv2RFC 2581 TCP6RFC 2819 Remote Network Monitoring Management Information BaseRFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup OperationsRFC 3176 sFlowRFC 3410 Introduction to Version 3 of the Internet-standard Network Management FrameworkRFC 3414 SNMPv3 User-based Security Model (USM)RFC 3415 SNMPv3 View-based Access Control Model (VACM) ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3
OSPF RFC 1587 OSPF NSSARFC 1850 OSPFv2 Management Information Base (MIB), trapsRFC 2370 OSPF Opaque LSA Option
QoS/CoS IEEE 802.1P (CoS)RFC 2474 DSCP DiffServRFC 2475 DiffServ ArchitectureRFC 2597 DiffServ Assured Forwarding (AF)RFC 2598 DiffServ Expedited Forwarding (EF)
Security IEEE 802.1X Port Based Network Access ControlRFC 1492 TACACS+RFC 1918 Address Allocation for Private InternetsRFC 2865 RADIUS AuthenticationRFC 2866 RADIUS AccountingAccess Control Lists (ACLs)MAC AuthenticationPort SecuritySSHv2 Secure Shell
