-5%
SRX300-SYS-JE
Model: SRX300-SYS-JE – Juniper SRX Series Service Gateways
Details: SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SRX300-SYS-JE Overview

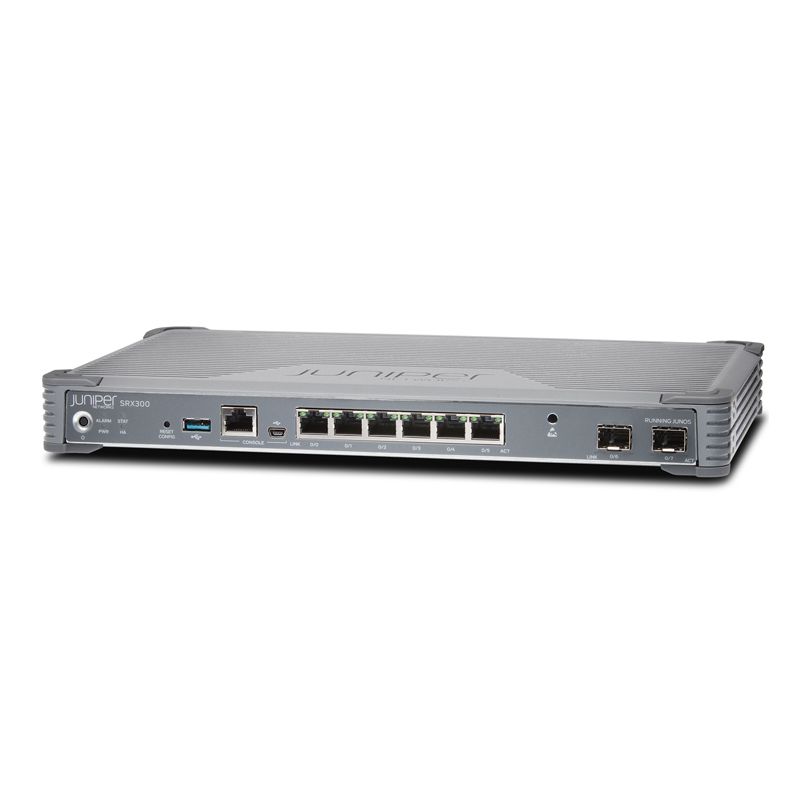

Quick Specs Figure 1 shows the appearance of SRX300-SYS-JE.
Table 1 shows the Quick Specs.
| Description | SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 1 Gbps |
| IPS performance | 100 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps |
| Maximum concurrent sessions | 64,000 |
| New sessions/second (sustained, TCP, 3-way) | 5000 |
| Maximum security policies | 1000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Out-of-band (OOB) management ports | 0 |
| Mini PIM (WAN) slots | 0 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | N/A |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 0 |
| Form factor | Desktop |
| Size (WxHxD) | 12.63 x 1.37 x 7.52 in. (32.08 x 3.47 x 19.10 cm) |
| Redundant PSU | No |
| Power supply | AC (external) |
| Average power consumption | 24.9 W |
| Average heat dissipation | 85 BTU/h |
| Maximum current consumption | 0.346 A |
| Airflow/cooling | Fanless |
| Operational temperature | -4° to 140° F (-20° to 60° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
Get more information
Do you have any question about the SRX300-SYS-JE?
Contact us now via Live Chat or sales@metafinitivetech.com
