647594-B21
Model: 647594-B21 – Networking Adapters for HPE Server
Details: HPE Ethernet 1Gb 4-port 331T Adapter:ProLiant Accy – NICs/Networking
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
647594-B21 Overview

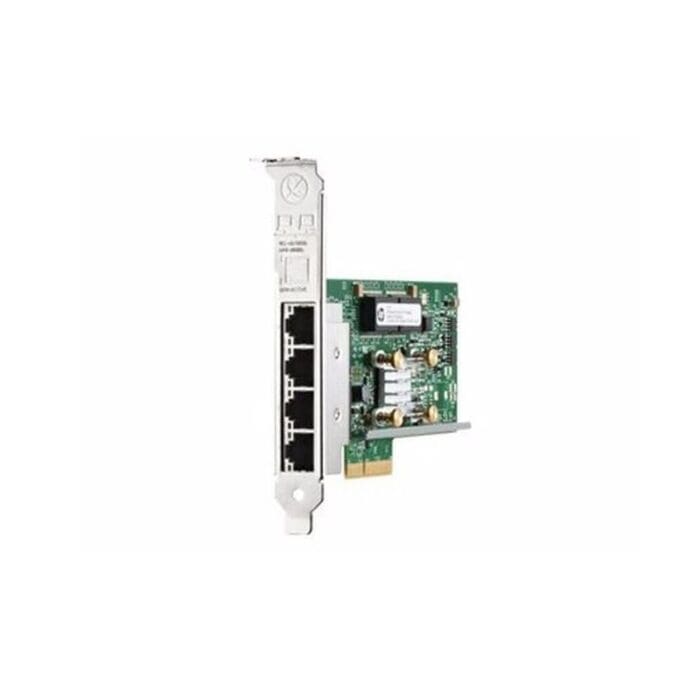

Quick Specs Figure 1 shows the appearance of 647594-B21.
Table 1 shows the Quick Specs.
| Qty | 4 |
| Type | PCI Express 2.0 x4 |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Compatibility | PC |
| Manufacturer | Broadcom |
| Packaged Quantity | 1 |
| Product Line | HPE |
| Model | 331T |
| Brand | HPE |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Connector Type | RJ-45 |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Included Accessories | Full-height bracket, Low-profile bracket |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Status Indicators | Link/activity, Port transmission speed |
| Cabling Type | Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Ports Qty | 4 |
| Features | Jumbo Frames support, Large Send Offload (LSO), PXE support |
| Interface Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Low Profile | Low profile |
| Installed Qty | 1 |
| Total Qty | 1 |
| Depth | 5.2 in |
| Height | 2.7 in |
