-5%
652497-B21
Model: 652497-B21 – Networking Adapters for HPE Server
Details: HPE Ethernet 1Gb 2-port 361T Adapter S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
652497-B21 Overview

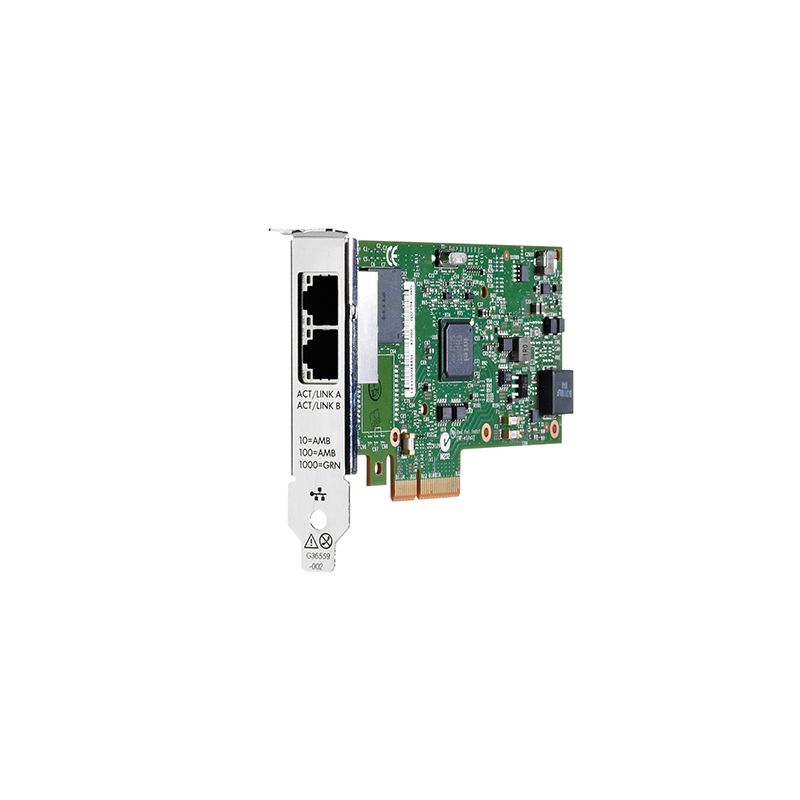

Quick Specs Figure 1 shows the appearance of 652497-B21.
Table 1 shows the Quick Specs.
| Qty | 2 |
| Type | PCI Express 2.0 x4 |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Compatibility | PC |
| Manufacturer | Intel |
| Packaged Quantity | 1 |
| Product Line | HPE |
| Model | 361T |
| Brand | HPE |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Connector Type | RJ-45 |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Included Accessories | Low-profile bracket |
| Form Factor | Low-profile |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP |
| Status Indicators | Link/activity, Port transmission speed |
| Cabling Type | Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Ports Qty | 2 |
| Features | Auto-negotiation, Energy Efficient Ethernet, Jumbo Frames support, Large Send Offload (LSO), Network fault tolerance (NFT), PXE support, Wake on LAN (WOL) |
| Interface Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Low Profile | Low profile |
| Installed Qty | 1 |
| Total Qty | 1 |
| Min Operating System | Citrix XenServer 6.0, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 6.1, SUSE Linux Enterprise Server, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5 |
| Depth | 5.3 in |
| Height | 2.5 in |
