711307-B21
Model: 711307-B21 – HP 6125XLG Blade Switch
Details: HP 6125XLG Blade Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
711307-B21 Overview

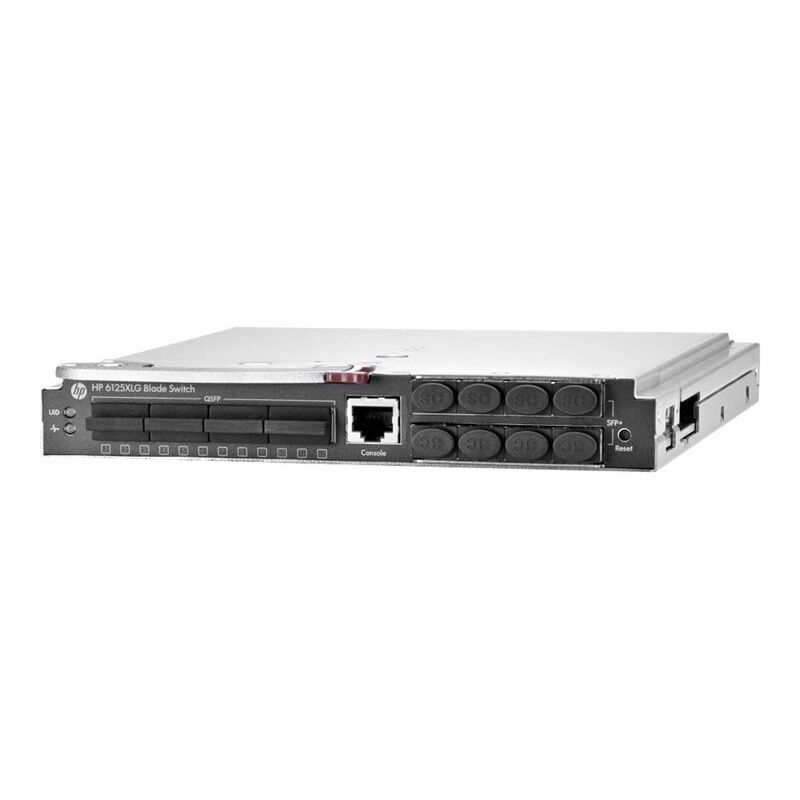

Quick Specs Figure 1 shows the appearance of 711307-B21.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Product Name | HP 6125XLG Blade Switch |
| Part Number | 711307-B21 |
| Form Factor | Blade Switch |
| Ports | 20x 1/10GbE SFP+ (16 internal, 4 external) |
| Uplinks | 2x 40GbE QSFP+, 1x 10GBASE-T |
| Switching Capacity | 1.28 Tbps |
| Packet Forwarding Rate | 960 Mpps |
| Latency | < 3.8 microseconds |
| Power Consumption | 195 Watts |
| Management | HPE Intelligent Management Center (IMC) |
| Operating Temperature | 0??C to 45??C |
| Storage Temperature | -40??C to 70??C |
| Relative Humidity (Operation) | 10% to 90% |
| Relative Humidity (Storage) | 10% to 95% |
| Heat Dissipation | 665 BTU/hr |
| Max VLANs | 4094 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| Dimensions | 32.0 x 29.76 x 3.48cm (W x D x H) |
