7600-ES+20G3C (USED)
Model: Cisco 7600 Ethernet Services Module 7600 ES+ Line Card, 20xGE SFP with DFC 3C
Details: Cisco 7600 Ethernet Services Module 7600 ES+ Line Card, 20xGE SFP with DFC 3C
Condition: Used
Warranty: 3 Years Warranty.
Description
7600-ES+20G3C (USED) Overview

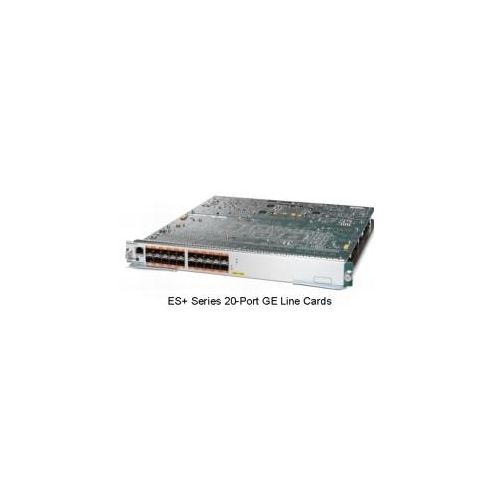

Quick Specs Figure 1 shows the appearance of 7600-ES+20G3C (USED).
_1.png)
Table 1 shows the Quick Specs.
| Device Type | Switch – 20 ports – managed – with Cisco Distributed Forwarding Card DFC-3C |
| Enclosure Type | Plug-in module |
| Subtype | Gigabit Ethernet |
| Compatible Slots | 1 x expansion slot |
| Ports | 20 x Gigabit SFP |
| MAC Address Table Size | 96K entries |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP, RMON, SMON |
| Features | Layer 2 switching, VLAN support, DiffServ support, MPLS Fast Reroute (FRR), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, ICES-003 Class A, EN300-386, FCC Part 15 A |
| RAM | 512 MB |
| Status Indicators | Status |
| Interfaces | 20 x SFP (mini-GBIC) |
| OS Required | Cisco IOS 12.2(33)SRD |
| Width | 15.4 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 11.68 lbs |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
| Designed For | Cisco 7603-S, 7604, 7604 Security Bundle, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle |
