7600-SIP-200 (USED) (USED)
Model: 7600-SIP-200 Catalyst 6500 Service Module
Details: Cisco 7600 Series SPA Interface Processor-200
Condition: Used
Warranty: 3 Years Warranty.
Description
7600-SIP-200 (USED) (USED) Overview

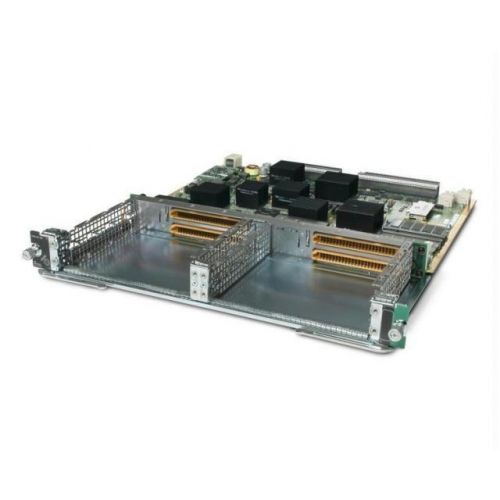

Quick Specs Figure 1 shows the appearance of 7600-SIP-200 (USED) (USED).
 (USED)_1.png)
Table 1 shows the Quick Specs.
| Compatibility | Cisco 7600 Series SUP32-3B, SUP720-3B, SUP720-3BXL, RSP720-3C, RSP720-3CXL, RSP720-3C-10G, and RSP720-3CXL-10G systems |
| Minimum Software Compatibility | Cisco IOS® Software Release 12.2(18)SXE, or later |
| Protocols | ● TCP● User Datagram Protocol (UDP)● IPv4 Unicast and Multicast● IPv6 Unicast and Multicast● MPLS |
| Encapsulation | ● Frame Relay● Multilink Frame Relay – FRF.16● PPP● MLPPP● Bridge Control Protocol (BCP)● High-Level Data Link Control (HDLC)● ATM permanent virtual circuit (PVC)-constant bit rate (CBR), variable bit rate real-time (VBR-rt), VBR non-real-time (VBR-nrt), and unspecified bit rate (UBR)● ATM switched virtual circuit (SVC)-CBR, VBR-rt, VBR-nrt, UBR, and UBR+● POS |
| Cards, Ports, and Slots | Four SPA bays per Cisco 7600 SIP-200. The SIP-200 supports oversubscription. |
| QoS | ● Modular QoS CLI (MQC)● Classification◦ ACLs◦ IP Precedence◦ IPv4 and IPv6◦ Differentiated services code point (DSCP)◦ MPLS experimental values (MPLS EXP)◦ Frame Relay Discard Eligibility◦ ATM cell loss priority (CLP)● QoS mappings – CLP, DE to IP type of service (ToS), MPLS EXP; and conversely● Hierarchical QoS |
| Queuing | ● Per-virtual circuit queuing● Low-latency queuing (LLQ)● Weighted Fair Queuing (WFQ)● Class-Based Weighted Fair Queuing (CBWFQ) |
| Congestion Avoidance | Weighted Random Early Detection (WRED) |
| Traffic Marking, Shaping, and Bandwidth Policing | ● Marking – IP Precedence, DSCP, MPLS EXP, ATM CLP, and FR DE● Policing● Distributed traffic shaping (DTS)● Hierarchical traffic shaping● Distributed network-based application recognition (NBAR) |
| Fragmentation | ● Distributed link fragmentation and interleaving (dLFI)● Frame Relay Forum FRF.12 |
| ACLs and Security | ● Standard, extended, dynamic, reflexive, and time-based ACLs● Classification based on packet length |
| Bandwidth Efficiency | ● cRTP● ATM permanent-virtual-circuit (PVC) bundles● Frame Relay virtual circuit bundles |
| Layer 2 Bridging and Interworking | ● RFCs 1483 and RFC 2684 ATM Virtual Circuits – Routed and Bridged● RFC 1490 Frame Relay Virtual Circiuts – Routed and Bridged● Multipoint Bridging for RFC 1483 virtual circuits● Multipoint Bridging for RFC 1490 virtual circuits● Bridge Control Protocol● Bridging of routed encapsulation● Routed bridged encapsulation |
| Layer 2 and Layer 3 VPNs | ● RFC 2547 MPLS VPNs● Ethernet over MPLS (EoMPLS)● ATM over MPLS (ATMoMPLS)● ATM Adaptation Layer 5 (AAL5) virtual circuit mode, single-cell relay virtual circuit mode● Frame Relay over MPLS (FRoMPLS)● PPP over MPLS (PPPoMPLS)● HDLC over MPLS (HDLCoMPLS)● Virtual circuit-to-virtual circuit local switching – Frame Relay, ATM – AAL0, AAL5 |
| High Availability | ● Nonstop forwarding (NSF)● Stateful switchover (SSO)● Automatic Protection Switching (APS) with ATM, POS SPAs● OIR |
| Memory | ● 512-MB default Double Data Rate (DDR) synchronous dynamic RAM (SDRAM)● Optionally upgradable to 1-GB DDR SDRAM memory |
| Supported SPAs | ATM● Cisco 2-Port OC-3c/STM-1c ATM Shared Port Adapter● Cisco 4-Port OC-3c/STM-1c ATM Shared Port AdapterPOS/Channelized● Cisco 2-Port OC-3c/STM-1c POS Shared Port Adapter● Cisco 4-Port OC-3c/STM-1c POS Shared Port Adapter● Cisco 1-Port Channelized OC-3c/STM-1c POS Shared Port AdapterCopper/Channelized● Cisco 8-Port Channelized T1/E1 Shared Port Adapter● Cisco 2-Port Clear Channel T3/E3 Shared Port Adapter● Cisco 4-Port Clear Channel T3/E3 Shared Port Adapter● Cisco 2-Port Channelized T3 (DS0) Shared Port Adapter● Cisco 4-Port Channelized T3 (DS0) Shared Port Adapter● Cisco 4-Port Serial Shared Port AdapterFast Ethernet● Cisco 4-Port Fast Ethernet Shared Port Adapter● Cisco 8-Port Fast Ethernet Shared Port Adapter |
| Environmental Conditions | ● Operating temperature: 32 to 104°F (0 to 40°C)● Storage temperature: –40 to 167°F (–20 to 70°C)● Relative humidity: 10 to 90%, noncondensing● Operating altitude: –60 to 2000m |
| MIBs | ● Cisco Entity MIB (CISCO-ENTITY-MIB)● Cisco Entity Asset MIB● CISCO-ENTITY-VENDOR-OIDTYPE-MIB OID● Cisco Entity Field-Replaceable Unit (FRU) Control MIB● CISCO-ENHANCED-MEMPOOL-MIB● CISCO-PROCESS-MIB● CISCO-ENVMON-MIB● Cisco Entity Alarm MIB● Simple Network Management Protocol (SNMP) MIB II (RFC 1213)● Remote Monitoring (RMON) MIB (RFC 1757) |
| Network Management | ● Supported with CiscoWorks CiscoView● CiscoWorks Resource Manager Essentials (RME)● Cisco IP Solution Center (ISC) |
| Physical Specifications | ● Occupies one slot in a Cisco 7600 Series Router● Supports up to 12 Cisco 7600 SIP-200s in a 13-slot chassis● Requires Supervisor Engine SUP32-3B, SUP720-3B, SUP720-3BXL, RSP720-3C, RSP720-3CXL, RSP720-3C-10G, or RSP720-3CXL-10G● Dimensions (H x W x D): 1.74 x 15.3 x 17 in.● Weight: 8.5 lb |
| Power | ● 160W power consumption per Cisco 7600 SIP-200● 240W maximum power consumption with Cisco 7600 SIP-200 and 4 SPAs |
| Indicators | Cisco 7600 SIP-200 status:● green (operational)● orange (faulty) |
| Regulatory Compliance | CE marking |
| Safety | ● UL 60950● CSA C22.2 No. 60950● EN60950● TS001● IEC 60950● AS/NZS3260 |
| EMC | ● FCC Part 15 Class A● ICES-003 Class A● VCCI Class A● EN55022 Class A● EN55024● EN50082-1● CISPR22 Class A● ETS-300 386 |
| Telecommunications Standards | ● ITU-T G.610● ITU-T G.703● ITU-T G.707● ITU-T G.783 Sections 9-10● ITU-T G.784● ITU-T G.803● ITU-T G.813● ITU-T G.825● ITU-T G.826● ITU-T G.841● ITU-T G.957 Table 3● ITU-T G.958● ITU-T I.361● ITU-T I.363● ITU I.432● ITU-T Q.2110● ITU-T Q.2130● ITU-T Q.2140● ITU-T O.151● ITU-T O.171● ETSI ETS 300 417-1-1● ACA TS 026 (1997)● BABT/TC/139 (Draft 1e) |
