7609-RSP720CXL-R (USED)
Model: 7609-RSP720CXL-R Cisco 7609 Router
Details: Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS
Condition: Used
Warranty: 3 Years Warranty.
Description
7609-RSP720CXL-R (USED) Overview

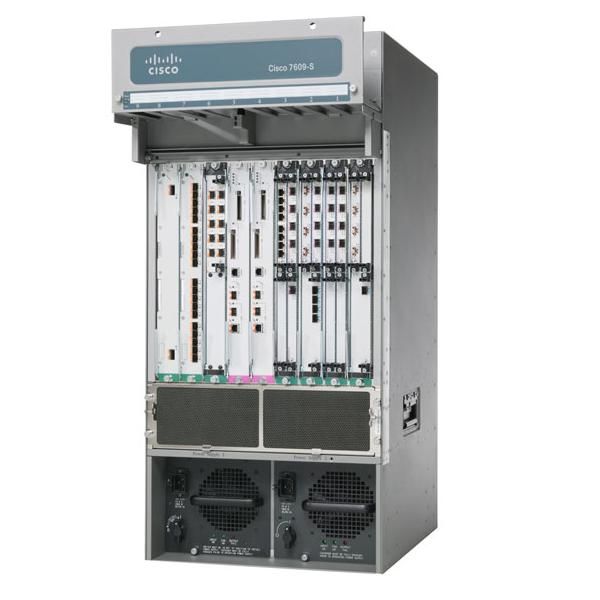

Quick Specs Figure 1 shows the appearance of 7609-RSP720CXL-R (USED).
_1.png)
Table 1 shows the Quick Specs.
| Product Number | 7609-RSP720CXL-R |
| Description | Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS |
| Manufacturer | Cisco Systems, Inc |
| Form Factor | Plug-in module – modular – 21U |
| Dimensions (WxDxH) | 36.75 x 17.2 x 20.7 in |
| Weight | 54.9 kg, chassis only |
| Processor | PowerPC 1.2 GHz |
| DRAM Memory | 3 GB (installed) / 6 GB (max) |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, ICMP/IP |
| Features | Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.1x |
| Bundled with | 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL |
