801238-L21
Model: 801238-L21 – HPE Server Processor
Details: HPE DL180 Gen9 Intel Xeon E5-2630v4 (2.2 GHz/10-core/25MB/85 W) FIO Processor Kit S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
801238-L21 Overview

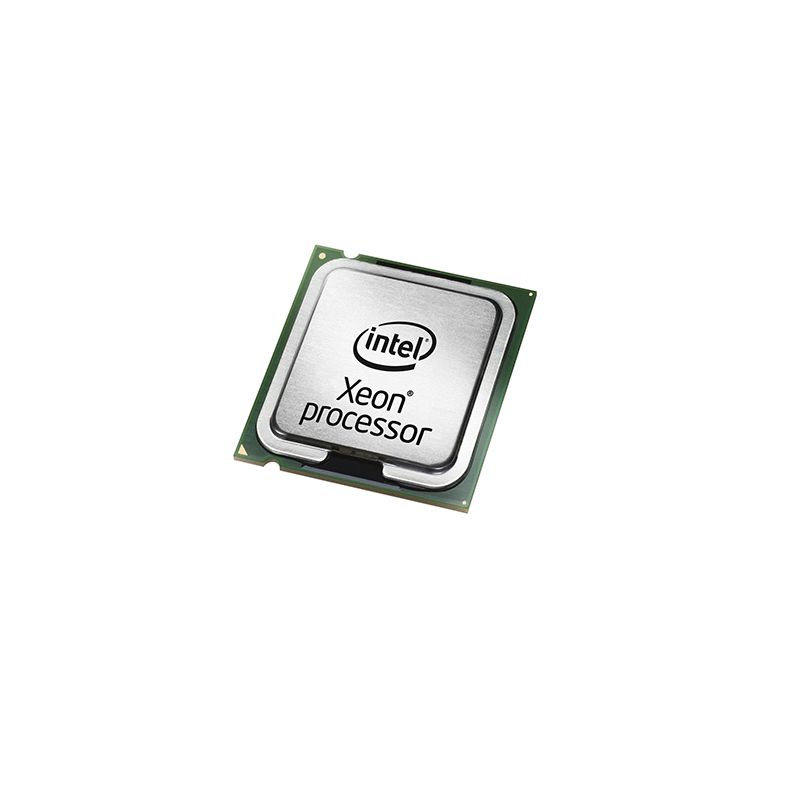

Quick Specs Figure 1 shows the appearance of 801238-L21.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Model | 801238-L21 |
| Product Name | HPE DL180 Gen9 Intel Xeon E5-2630v4 Processor Kit |
| Processor Type | Intel Xeon E5-2630v4 |
| Processor Speed | 2.2 GHz |
| Number of Cores | 10 |
| Cache | 25 MB |
| Power Consumption | 85 W |
| Compatible Server Series | HPE DL180 Gen9 |
| Processor Socket | LGA 2011-v3 |
| Manufacturing Technology | 14 nm |
| Thermal Design Power (TDP) | 85 W |
| Memory Support | DDR4 2133 MHz |
| Max Memory Bandwidth | 68.3 GB/s |
| Hyper-Threading Support | Yes |
| Max Number of PCI Express Lanes | 40 |
| Intel Turbo Boost Technology | 2.0 |
| Intel vPro Technology | Yes |
| Max Number of Memory Channels | 4 |
| Embedded Options Available | No |
| Form Factor | FIO (Factory Integrated Option) |
