-5%
811546-B21
Model: 811546-B21 – Networking Adapters for HPE Server
Details: HPE Ethernet 1Gb 4-port 366T Adapter S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
811546-B21 Overview

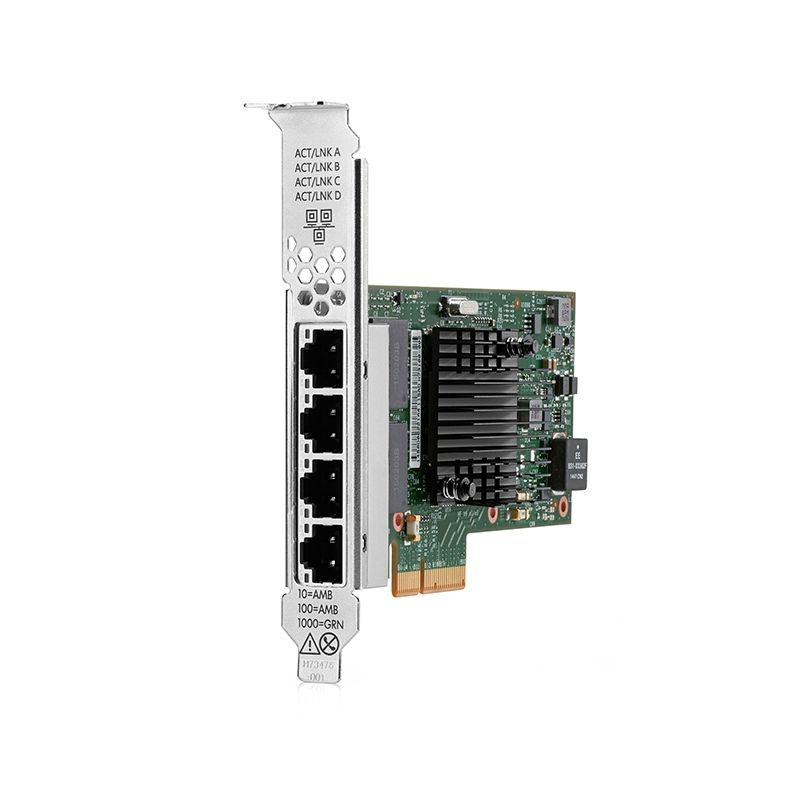

Quick Specs Figure 1 shows the appearance of 811546-B21.
Table 1 shows the Quick Specs.
| Qty | 4 |
| Type | I350 |
| Connectivity Details Type | None |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Compatibility | PC, Unix |
| Manufacturer | Intel |
| Packaged Quantity | 1 |
| Product Line | HPE |
| Model | 366T |
| Brand | HPE |
| Connector Type | RJ-45 |
| Compliant Standards | IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Included Accessories | Full-height bracket, Half-height bracket |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Protocol | SNMP |
| Status Indicators | Link/activity, Port transmission speed |
| Ports Qty | 4 |
| Features | Extended Message-Signaled Interrupts (MSI-X), Fault tolerance, Jumbo Frames support, Large Send Offload (LSO), Load balancing, PXE support |
| Interface Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| Low Profile | Low profile |
| Installed Qty | 1 |
| Min Operating System | Citrix XenServer 6.0, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Small Business Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 6.1, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, VMware vSphere 4.1, VMware vSphere 5.0 |
| Depth | 5.3 in |
| Height | 2.7 in |
Get more information
Do you have any question about the 811546-B21?
Contact us now via Live Chat or sales@metafinitivetech.com
