-5%
817710-B21
Model: 817710-B21 – HPE Eth 10/25Gb 631FLR-SFP28 FIO Adptr
Details: HPE Eth 10/25Gb 631FLR-SFP28 FIO Adptr S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
817710-B21 Overview

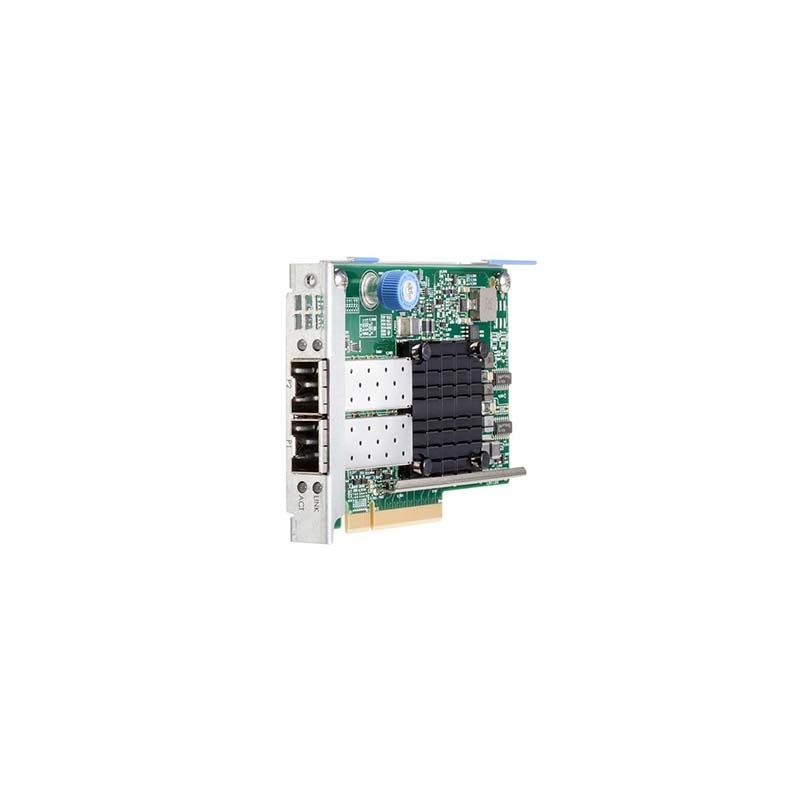

Quick Specs Figure 1 shows the appearance of 817710-B21.
Table 1 shows the Quick Specs.
| Product Number | 817710-B21 |
| Product Description | HPE Ethernet 10/25Gb 2-port 631FLR-SFP28 FIO Adapter |
| Supported Devices | HPE ProLiant DL360 Gen10 (631FLR-SFP28, 631SFP28)HPE ProLiant DL380 Gen10 (631FLR-SFP28, 631SFP28)HPE ProLiant DL385 Gen10 (631FLR-SFP28, 631SFP28)HPE ProLiant DL560 Gen10 (631FLR-SFP28, 631SFP28)HPE Apollo 6000 – XL230k Gen10 (631SFP28) |
| Network Processor | Broadcom BCM57414 |
| Data Rate | Two ports, each at 50 Gbps bi-directional; 100 Gbps bi-directional theoretical bandwidth. |
| Bus type | PCIe 3.0 x8 |
| Form Factor | FLexibleLOM(631FLR-SFP28) or Stand up card (631SFP28) |
| IEEE Compliance | 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg, 802.1Qbb,802.1Qaz, 802.3az, 802.3AS, 802.1Qau |
| Connector | Two SFP28 (SR, DAC) |
| Power | 9.04W typical (631FLR-SFP28), 14W maximum (631FLR-SFP28)9.84W typical (631SFP28), 14W maximum (631SFP28) |
| Temperature – Operating | 5° to 60° C (41° to 140° F) |
| Temperature – Non-Operating | -40°C to 70°C / -40°F to 158°F |
| Humidity – Operating | System relative humidity: Minimum to be the higher (more moisture) of-12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower(less moisture) of 24°C (75.2°F) dew point or 90% relative humidity. noncondensing. |
| Humidity – Non-operating | 5 to 95% relative humidity, non-condensing. |
