817722-B21
Model: 817722-B21 – HPE Eth 10Gb 2p 535FLR-T FIO Adptr
Details: HPE Eth 10Gb 2p 535FLR-T FIO Adptr S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
817722-B21 Overview

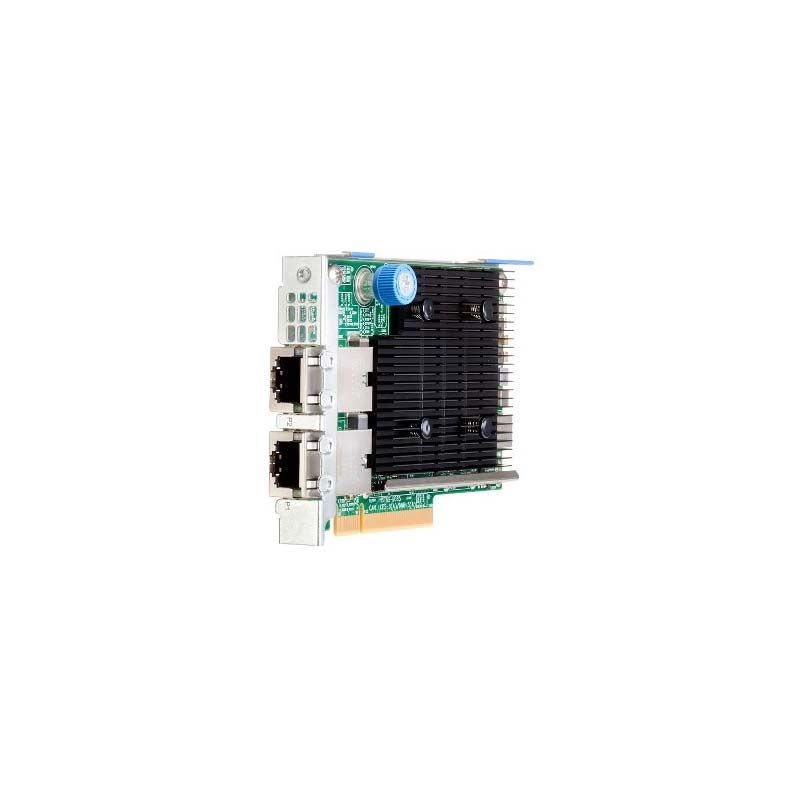

Quick Specs Figure 1 shows the appearance of 817722-B21.
Table 1 shows the Quick Specs.
| Product Number | 817722-B21 |
| Product Description | HPE Ethernet 10Gb 2-port 535FLR-T FIO Adapter |
| Supported Devices | HPE ProLiant DL360 Gen10 (535FLR-T, 535T)HPE ProLiant DL380 Gen10 (535FLR-T, 535T)HPE ProLiant DL385 Gen10 Server (535FLR-T, 535T)HPE ProLiant DL560 Gen10 (535FLR-T, 535T)HPE Apollo 6000 (535T)HPE ProLiant XL230k Gen10 Server (535T) |
| Network Processor | Broadcom BCM57416 |
| Data Rate | Two ports, each at 20 Gbps bi-directional; 40 Gbps bi-directional theoretical bandwidth. |
| Bus type | PCIe 3 x8 |
| Form Factor | FlexibleLOM(535FLR-T), Stand up (535T) |
| IEEE Compliance | 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3az, 802.3AS, 802.1Qau, 802.3an |
| Connector | RJ-45(two) |
| Power | 15.50W typical, 19.60W maximum – 535FLR-T14.64W typical, 19.60W maximum – 535T |
| Temperature – Operating | 5° to 60° C (41° to 140° F) |
| Temperature – Non-Operating | -40°C to 70°C / -40°F to 158°F |
| Humidity – Operating | System relative humidity: Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity. noncondensing. |
| Humidity – Non-operating | 5 to 95% relative humidity, non-condensing. |
