873830-S01
Model: 873830-S01 – HPE ProLiant ML10 Servers
Details: HPE ProLiant MicroServer Gen10 X3216 3.0GHz 2-core 1P 8GB-U 4LFF NHP SATA 200W PS Entry AMS Server S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
873830-S01 Overview

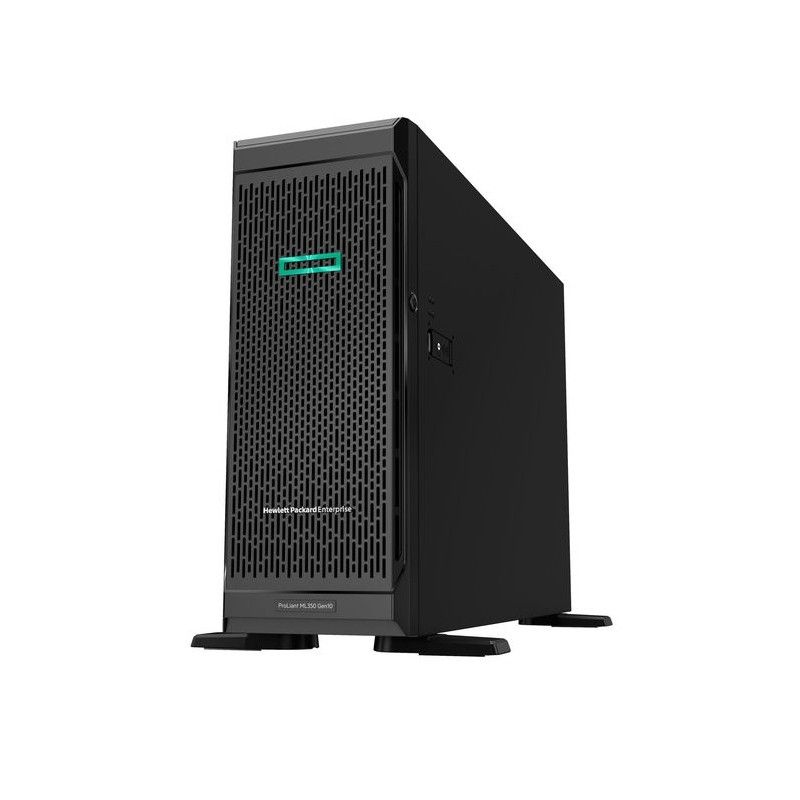

Quick Specs Figure 1 shows the appearance of 873830-S01.
Table 1 shows the Quick Specs.
| Type | Server |
| Product Form Factor | Ultra micro tower |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| CPU | AMD Opteron X3216 / 1.6 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Installed Size | L2 cache – 1 MB |
| Cache Per Processor | 1 MB |
| Technology | DDR4 SDRAM – ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) |
| Features | Unbuffered |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Marvell 88SE9230 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Monitor Type | None. |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 1 (total) / 1 (free) x external 5.25″ ¦ 4 (total) / 4 (free) x internal 3.5″ LFF |
| Interfaces | 1 x VGA ¦ 3 x USB 2.0 (2 rear, 1 internal) ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 (2 front, 2 rear) |
| Compliant Standards | ICES-003, EN55024, EMC, FCC CFR47 Part 15, ACPI 5.0, GB 9254, CNS 13438, EN61000-3-2, EN61000-3-3, K24, CISPR 32, EN 55032 |
| Device Type | Power supply |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 200 Watt |
| OS Certified | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, ClearOS |
| Service & Support | Limited warranty – parts and labor – 1 year – on-site |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Product Description | HPE ProLiant MicroServer Gen10 Entry – ultra micro tower – Opteron X3216 1.6 GHz – 8 GB |
| Processor | 1 x AMD Opteron X3216 / 1.6 GHz (3 GHz) (Dual-Core) |
| Cache Memory | 1 MB L2 cache |
| RAM | 8 GB (installed) / 32 GB (max) DDR4 SDRAM – ECC – PC4-19200 |
| Storage Controller | SATA (SATA 6Gb/s) (Marvell 88SE9230) |
| Server Storage Bays | Non-hot-swap |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| manufacturer | Hewlett Packard Enterprise |
| Configuration Features | 1 x 8 GB |
