8812-SYS
Model: 8812-SYS – Cisco 8000 Series Routers
Details: Cisco 8812 12-slot System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
8812-SYS Overview

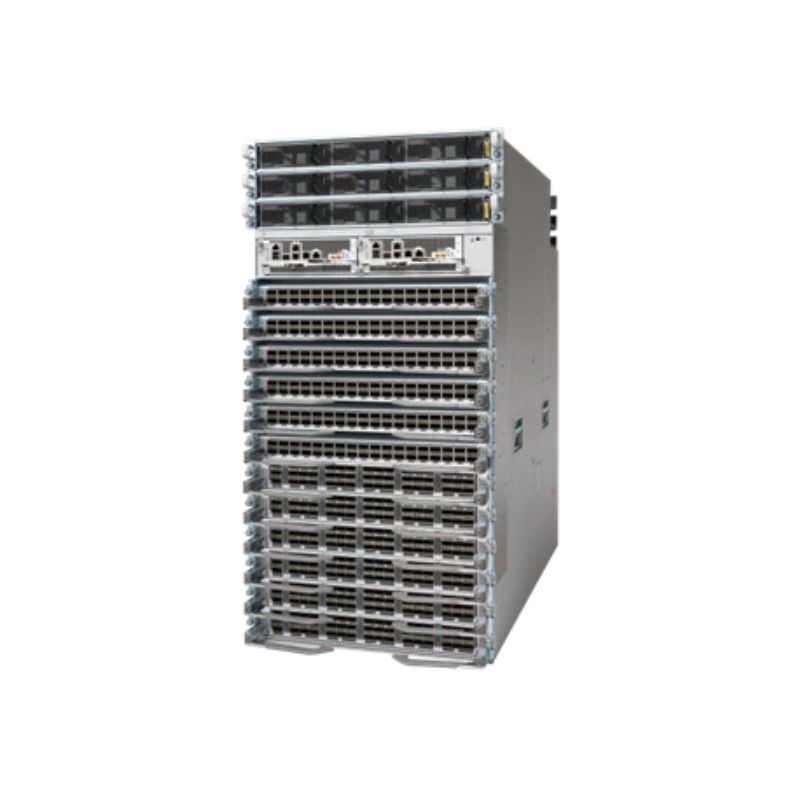

Quick Specs Figure 1 shows the appearance of 8812-SYS.
Table 1 shows the Quick Specs.
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5% to 95% (noncondensing) |
| Altitude | 0 to 9842 ft. (0 to 3000 m) |
| Feature | 2 route processorsIntel Broadwell 4-core 2.4 GHz CPU with 32 GB of DRAM. RS-232 console, 10 GbE Control Plane expansion SFP+, 1 GbE Management & BMC port, 2x USB2.0, GBP (ToD, 10MHz, 1PPS), 1588, and BITs (sync).Cable management, doors, and air filters6.3 KW power supply for AC and high-voltage DC (180 to 305V AC, 192 to 200V DC)4.4 KW power supply for 48V 60A DC (-40 to -75V DC)4.8 KW power supply for 48V 100A DC (-40 to -75V DC)Horizontal line cards with 8 vertical fabric cards and 4 fan traysRack mountable in standard 19 in. (48.3 cm) rack |
| Power Supply | Typical system power at 172.8 Tbps: 20 KW9 high-voltage power supplies or 12 48V DC power supplies |
| Dimension | (H) 36.75 x (W) 17.45 x (D) 35.43 in. (93.345 x 44.23 x 90 cm) – 21 RU – 12 line cardsDepth with cable management, filter, and doors: 41.55 in. (105.5 cm) |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. |
| Safety | UL 60950-1 Second EditionCAN/CSA-C22.2 No. 60950-1 Second EditionEN 60950-1 Second EditionIEC 60950-1 Second EditionAS/NZS 60950-1GB4943 |
| EMC: Emissions | 47CFR Part 15 (CFR 47) Class AAS/NZS CISPR22 Class ACISPR22 Class AEN55022 Class AICES003 Class AVCCI Class AEN61000-3-2EN61000-3-3KN32 Class ACNS13438 Class A |
| EMC: Immunity | EN55024CISPR24EN300386KN 61000-4 Series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. |
