Sold out
A000DIV05
Model: Huawei A000DIV05 27020080 2G/3G Divider
Details: 2G/3G,1:4 Divider,800~2500MHz,N(F)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
A000DIV05 Overview

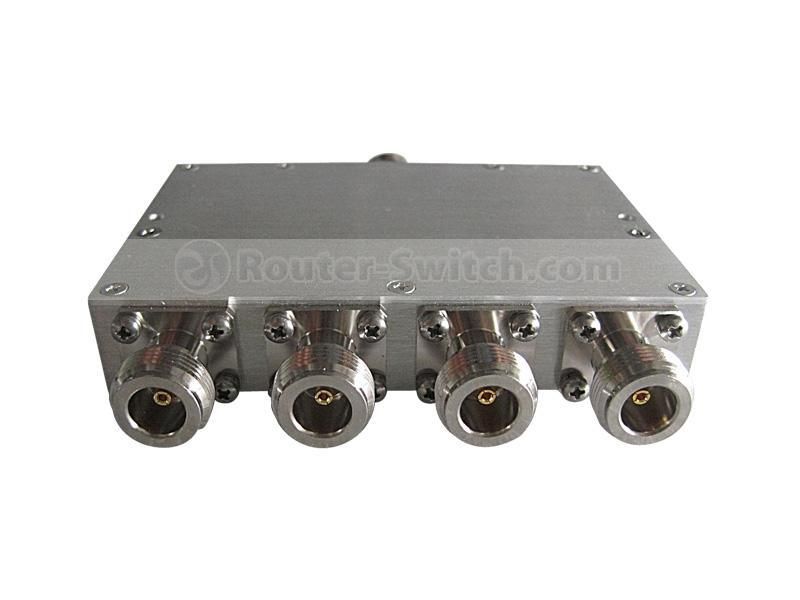

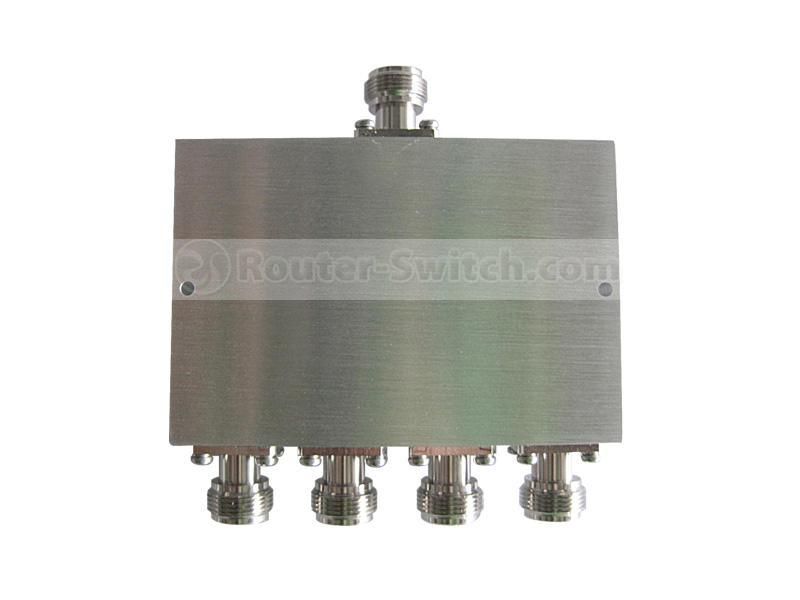

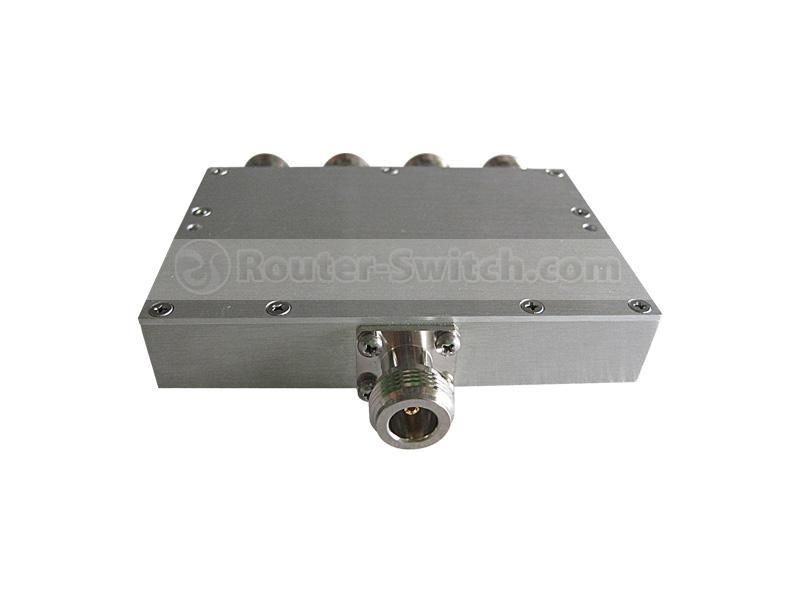

Quick Specs Figure 1 shows the appearance of A000DIV05.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | A000DIV05 |
| Frequency Range | 800~2500MHz |
| Product Type | Divider |
| Distribution Ratio | 1:4 |
| Supported Networks | 2G/3G |
| Connector Type | N(F) |
| Insertion Loss | Less than 5 dB |
| Operating Temperature | -30°C to +60°C |
| Maximum Input Power | 50W |
| Impedance | 50 Ohms |
| VSWR | Less than 1.5:1 |
| Housing Material | Aluminum |
| Size | 142mm x 120mm x 33mm |
| Finish | Anodized |
| Isolation | More than 20 dB |
| RoHS Compliant | Yes |
| Mounting | Wall Mount |
| Warranty | 1 Year |
| Manufactured In | China |
