A000DIV06
Model: Huawei A000DIV06 27020081 Divider
Details: Divider,1 to 3,800~2500MHz,N-K,microstrip line ,No-active
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
A000DIV06 Overview

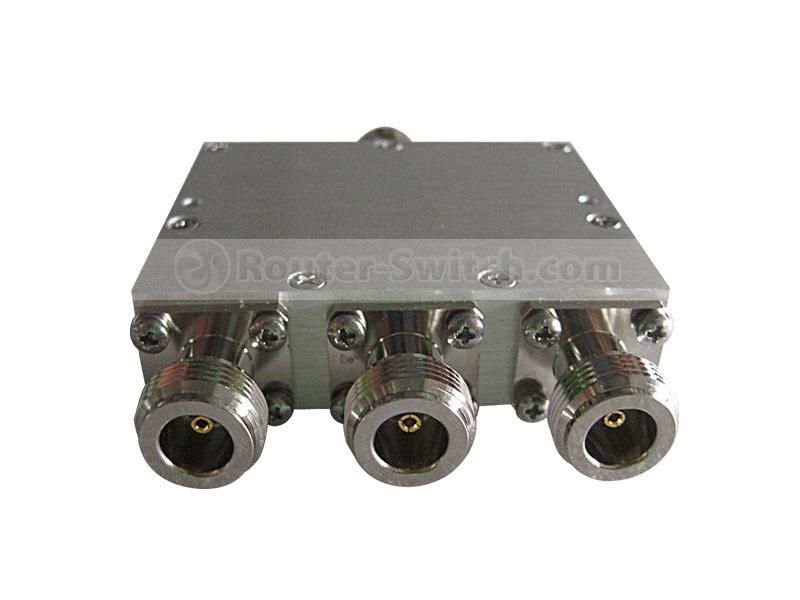

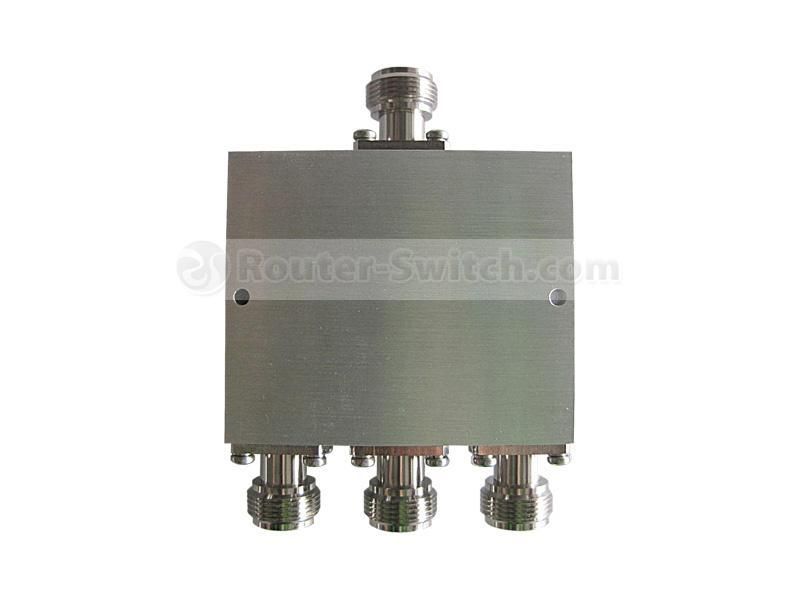

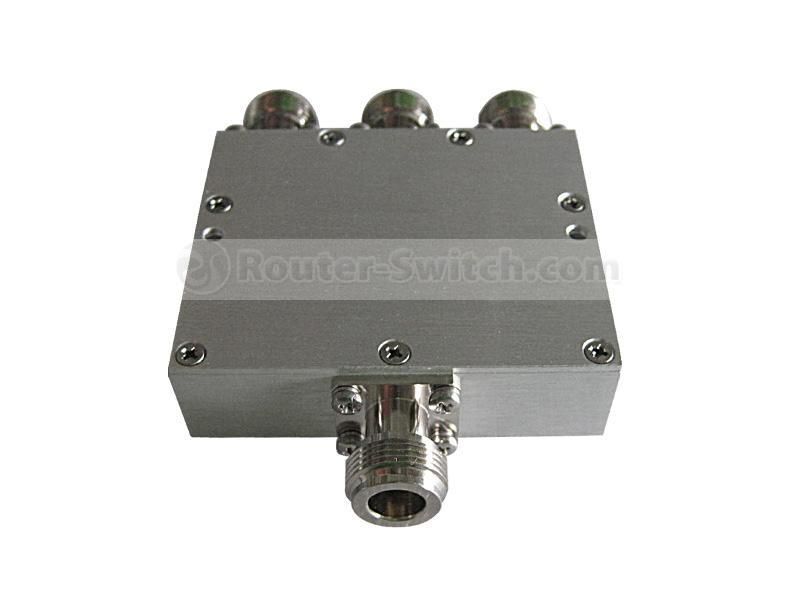

Quick Specs Figure 1 shows the appearance of A000DIV06.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | A000DIV06 |
| Type | Divider |
| Frequency Range | 800~2500MHz |
| Number of Outputs | 1 to 3 |
| Connector Type | N-K |
| Line Type | Microstrip Line |
| Active/Passive | No-active |
| Bandwidth | 1700 MHz |
| Impedance | 50 Ohms |
| VSWR | < 1.3:1 |
| Insertion Loss | < 0.2 dB |
| Isolation | > 20 dB |
| Power Handling | 30 W |
| Temperature Range | -40°C to +85°C |
| Dimensions | 95 x 60 x 25 mm |
| Material | Aluminum Alloy |
| Finish | Passivated |
| RoHS Compliance | Yes |
| Environmental Protection | IP67 |
| Mounting Type | Panel Mount |
