A00COUP01
Model: Huawei A00COUP01 27130009 Antenna Feeder Coupler
Details: Antenna Feeder Coupler,CDMA/GSM/WCDMA/WLAN,Cavity stripline structure,800~2500MHz,5+/-0.6dB,N/female
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
A00COUP01 Overview

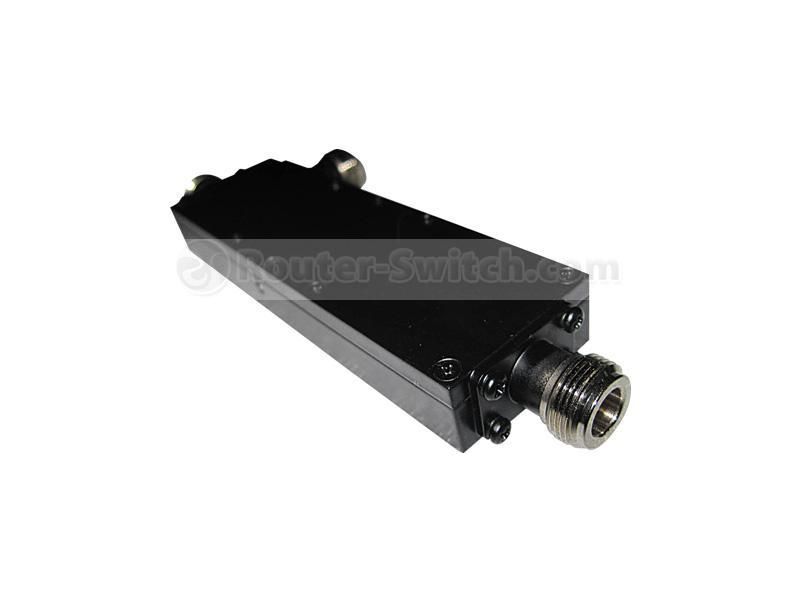

Quick Specs Figure 1 shows the appearance of A00COUP01.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | A00COUP01 |
| Product Type | Antenna Feeder Coupler |
| Frequency Range | 800~2500MHz |
| Supported Networks | CDMA/GSM/WCDMA/WLAN |
| Structure | Cavity Stripline |
| Gain | 5+/-0.6dB |
| Impedance | 50 Ohms |
| Connector Type | N/Female |
| Operating Temperature | -40°C to +85°C |
| VSWR | <1.5:1 |
| Maximum Power Rating | 200 Watts |
| Material | Aluminum Alloy |
| Isolation | >30dB |
| Dimensions | 120mm x 80mm x 40mm |
| Color | Silver |
| Mounting Type | Panel Mount |
| Weatherproof | Yes |
| RoHS Compliant | Yes |
| Product Code | A00COUP01 |
| Application | Telecommunications |
